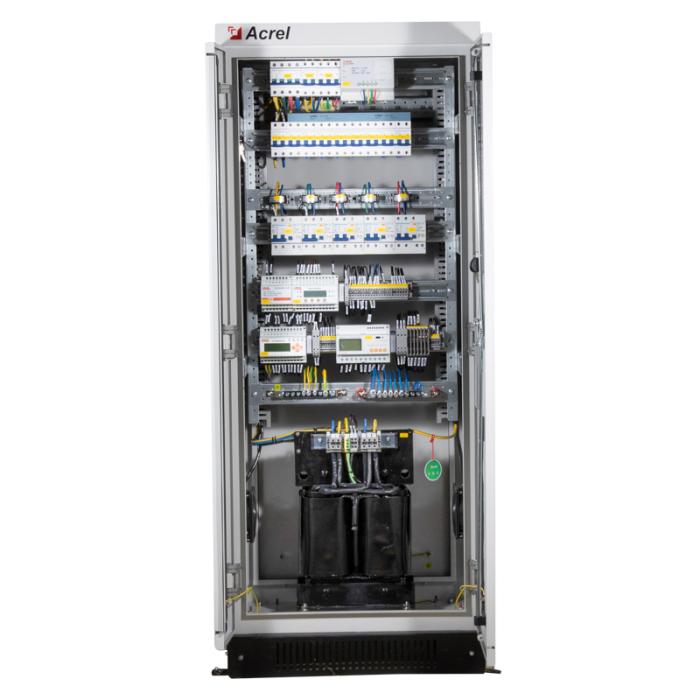

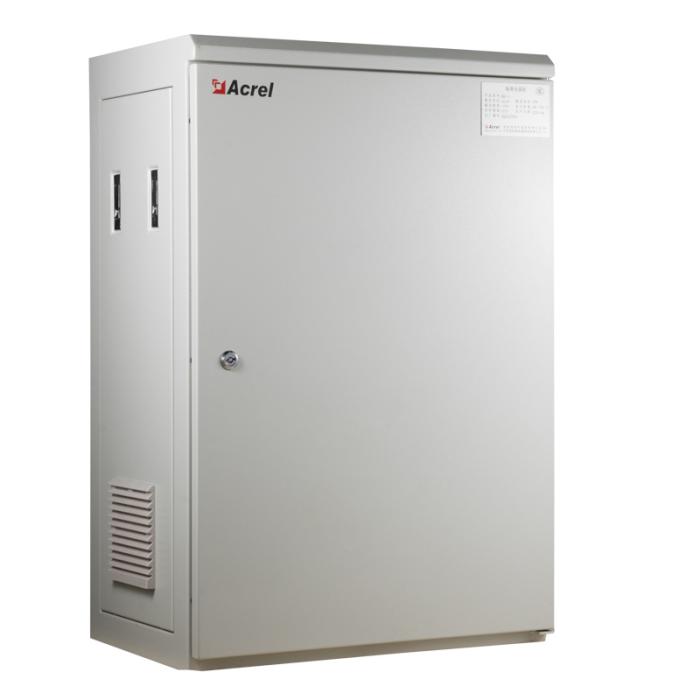

GGF Isolated Power Supply Panel for Hospitals
Main features：
• Suitable for power distribution systems in group 2 medical locations such as operating rooms, ICU, CCU, NICU and emergency room;
• Using Q235A cold rolled steel plate;
• With cooling fan;
•With various types of installation;
• Protection level: IP31;
• Standard and certificate: IEC60364-7-710:2016; IEC 61439-2:2011;
- Detalhes
- Parâmetros
- Documentos
1. General：
The GGF isolation panel is suitable for power distribution system of class 2 medical place or other IT systems, such as operating rooms, clean operating rooms, intensive care units ICU/CCU/NICU and emergency rooms. These
places have high requirements on the reliability and safety of the power supply system, so it is necessary to use the local IT system for power supply and implement local auxiliary equipotential measures. According to the different
conditions of the operating room and intensive care unit, the corresponding power distribution scheme is provided.

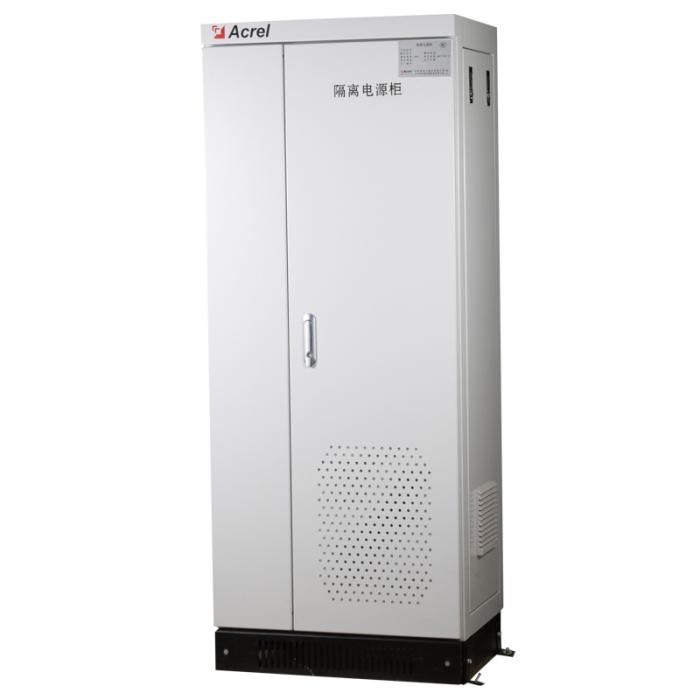

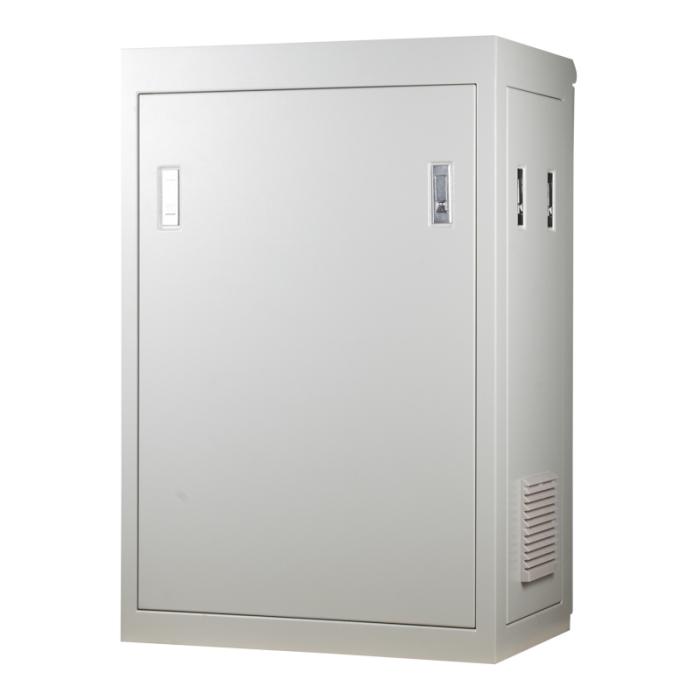

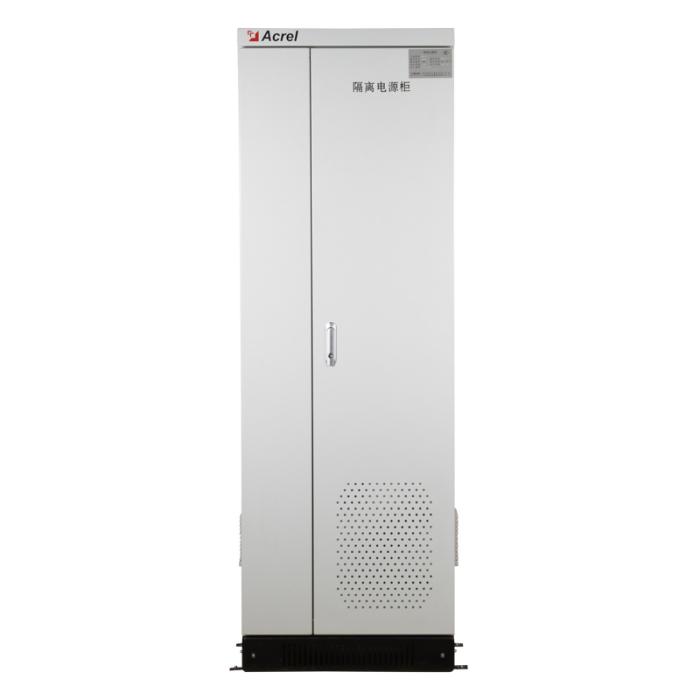

The GGF panel has three installation ways: floor installation, wall embedded and separate type, which can be flexibly selected according to site conditions.
The GGF insulation panels meet the standards of IEC 61439-2.

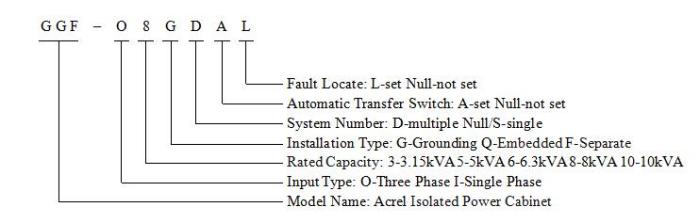

2. Models:
3. Dimension:
4. Diagrams：

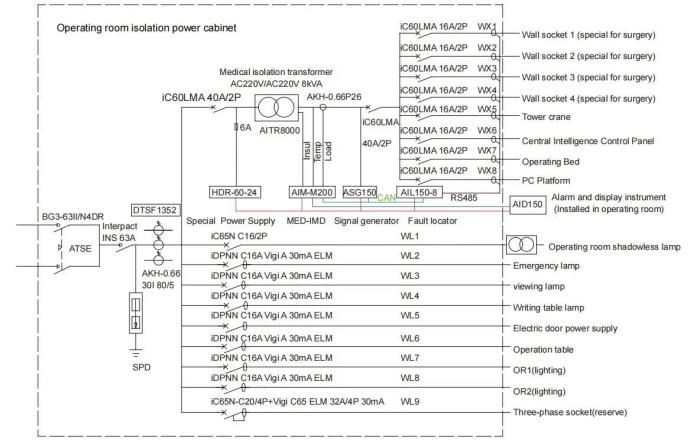

GGF-I8G Insulation distribution panel system's diagram:
GGF-O8G Insulation distribution panel system's diagram:

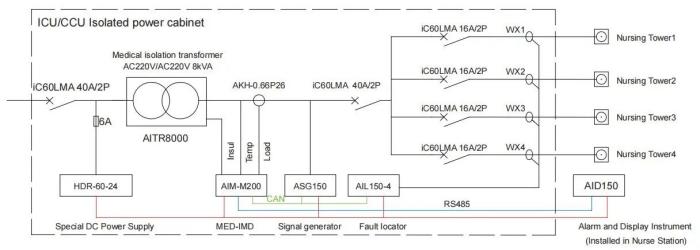

5. Sample solutions:

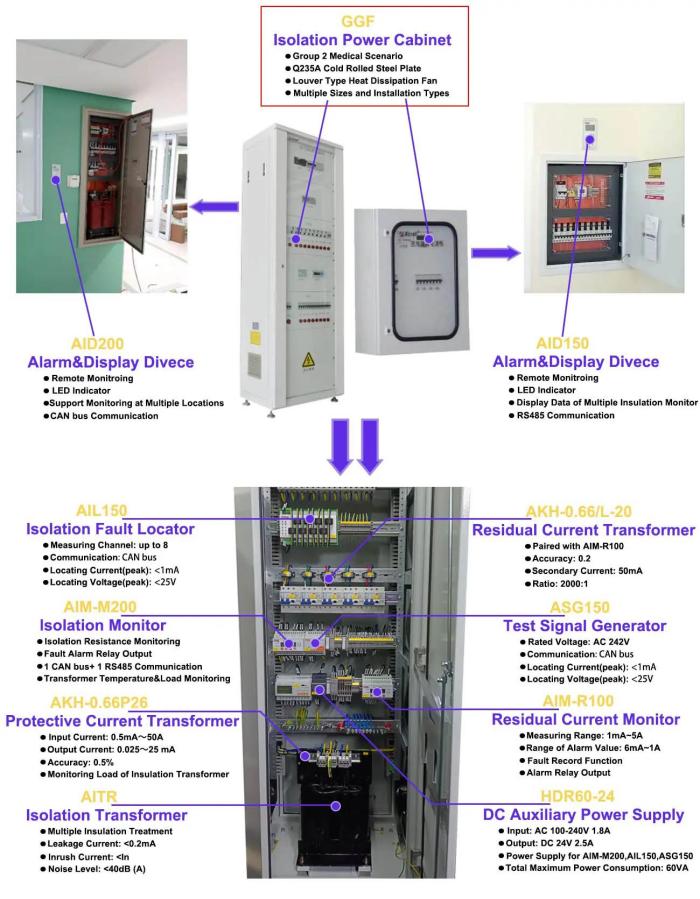

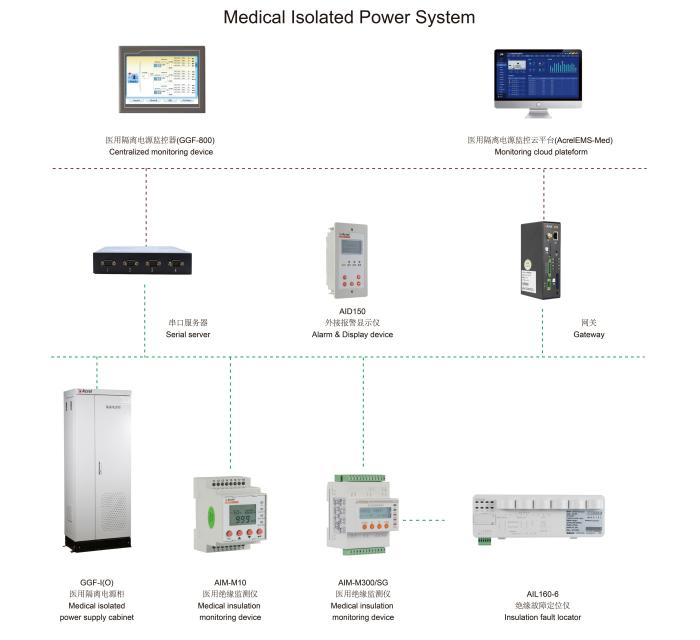

6. Structure of isolated power supply system for hospitals:
7. Photo on site:
