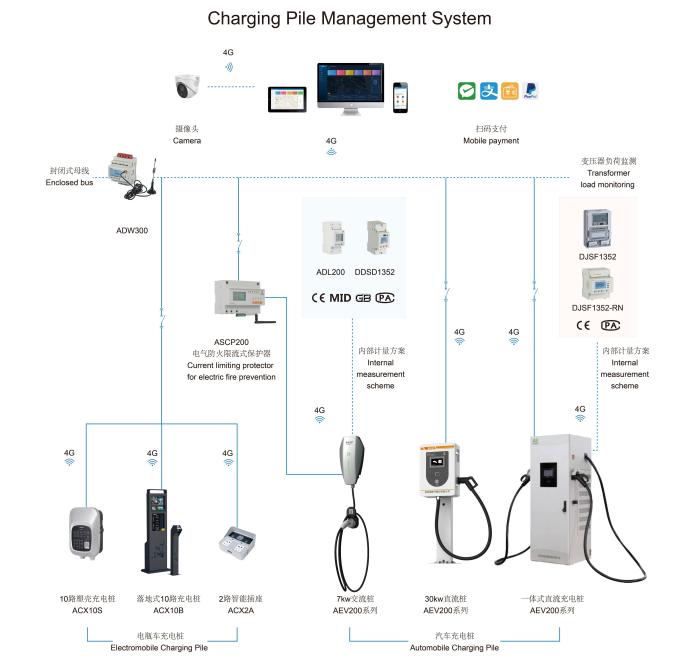

Sistema de Gerenciamento de Carregador de Carro Elétrico

It provides two charging methods, trickle charging and fast charging, wall-mounted and landing charging piles, and provides charging software solutions for electric vehicles. You can enjoy convenient, efficient and safe charging services anytime, anywhere. Charging methods are diversified, and convenient, efficient and safe charging services are provided for car owners and users.

Application:
Community, Hotel, Shopping Plaza, School, Hospital, Industrial Park.

Structure::

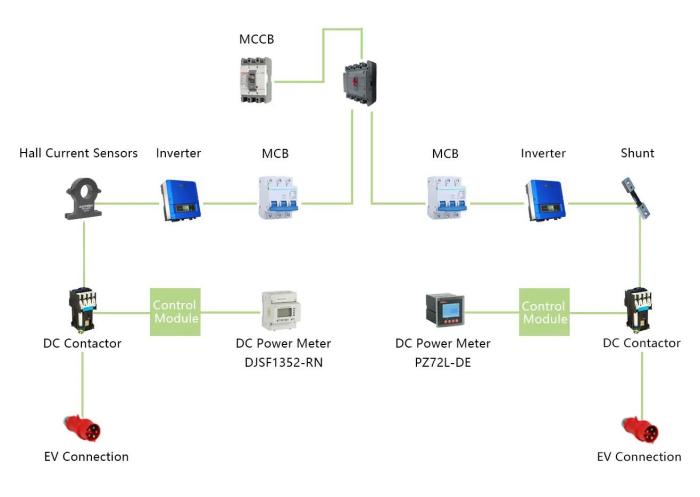

DC EV Charger:

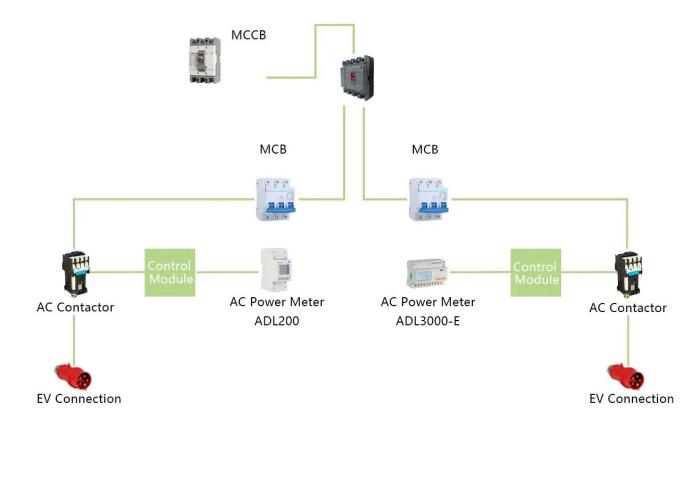

AC EV Charger:

Principal functions:

It can measure and display electrical parameters such as voltage, current, power, energy, and supports RS485 communication and electrical energy pulse output.
①Precision:
Energy accuracy: Class 0.5S or Class 1;
②Optional configuration:
Optional multiple rate;
③Certificate:
With CE or IEC certification;

Product selection:

①ADL10-E Medidor de Energía Eléctrica Monofásico		• 10(60)A, AC 220V; • RS485, MODBUS-RTU; • LCD display; • kWh Class 1, Kvarh Class 2; • U、I、P、Q、S、PF、kWh、kvarh; • DIN 35mm;
②ADL100-ET Medidor de energía multifunción monofásico		• AC 220V; • 10(60)A,20(100)A; • RS485(MODBUS-RTU); • Set parameters; • LCD display; • DIN 35mm;

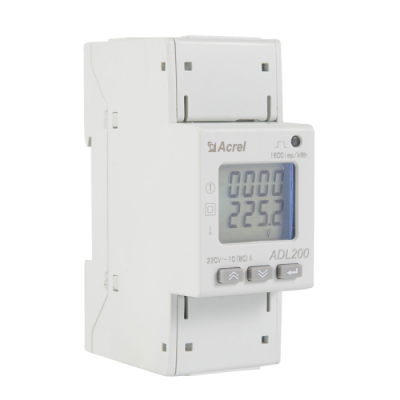

③ADL200 MIDMedidor de energía en carril Din		• AC220V; • 3×10(80)A; • RS485(MODBUS-RTU); • Set parameters; • LCD display; • kWh Class 1; • DIN 35mm;

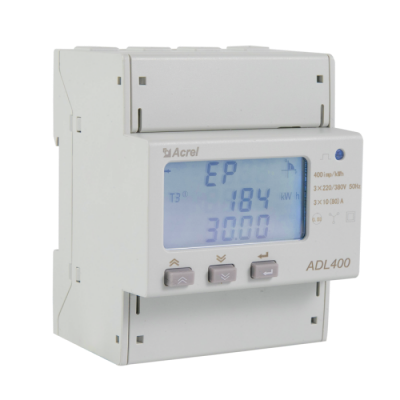

④ADL400 MID Medidor de energía en carril Din		• AC 3×100V, 3×380V, 3×57.7/100V, 3×220/380V; • 3×1(6)A, 3×10(80)A; • RS485(MODBUS-RTU); • Set parameters; • LCD display; • DIN 35mm;

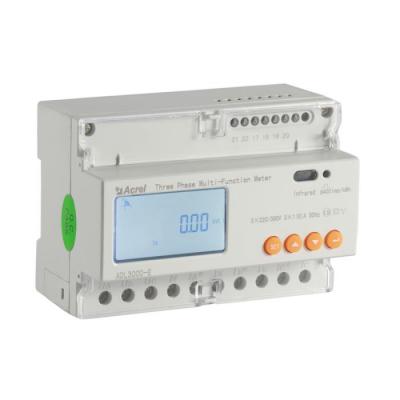

⑤ADL3000-E UL Medidor de energía multifunción trifásico		• AC 3×220/380V, 3×380V, 3×57, 7/100V, 3×100V; • 3×1(6)A, 3×10(80)A; • U、I、P、Q、S、PF、kWh、kvarh; • RS485(MODBUS-RTU); • LCD display; • Frozen data; • 2-31st harmonics; • kWh Class 0.5S, kVarh Class 2kWh Class 0.5; • DIN 35 mm;

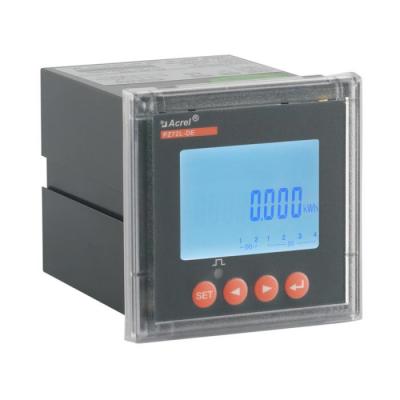

⑥PZ72(L)-DE DC Medidor de energía de panel		• Measure voltage, current, power, forward and reverse power in DC system; • Local display; • RS485 (MODBUS-RTU); • Set parameters; • DI/DO, relay alarm output; • Applications: DC panels, solar power, telecommunications base stations and charging piles;

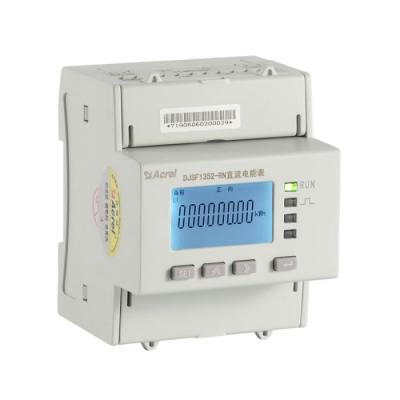

⑦DJSF1352-RN Medidor de potencia DCen carril Din		• Din rail mounted, supports optional two-channel DC voltage, current and power measurement; • Measure DC power; • Direct connection voltage 0-1000V; • Current measurement supports 75mV shunt output, supports 0-5V Hall sensor, 0-20mA output; • RS485 communication (Modbus protocol)

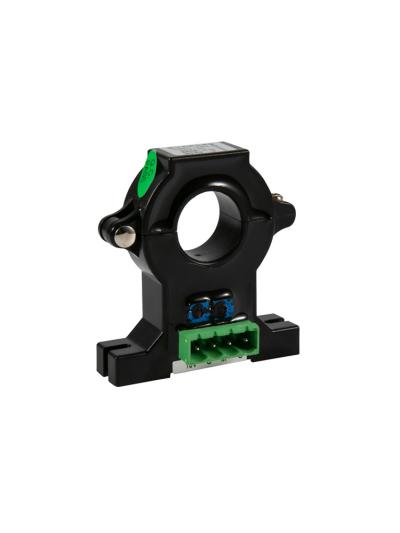

⑧AHKC-E Sensor Hall		Measurement: AC, DC, pulses and other complex currents;
