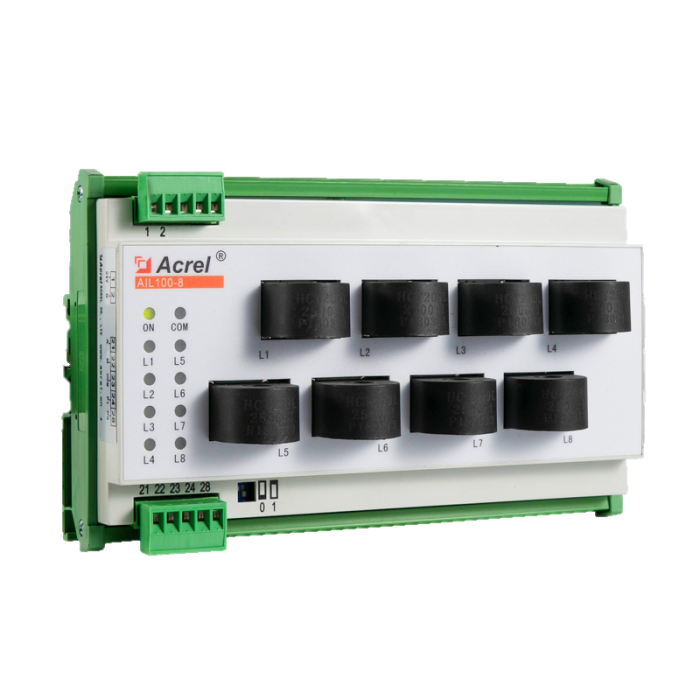

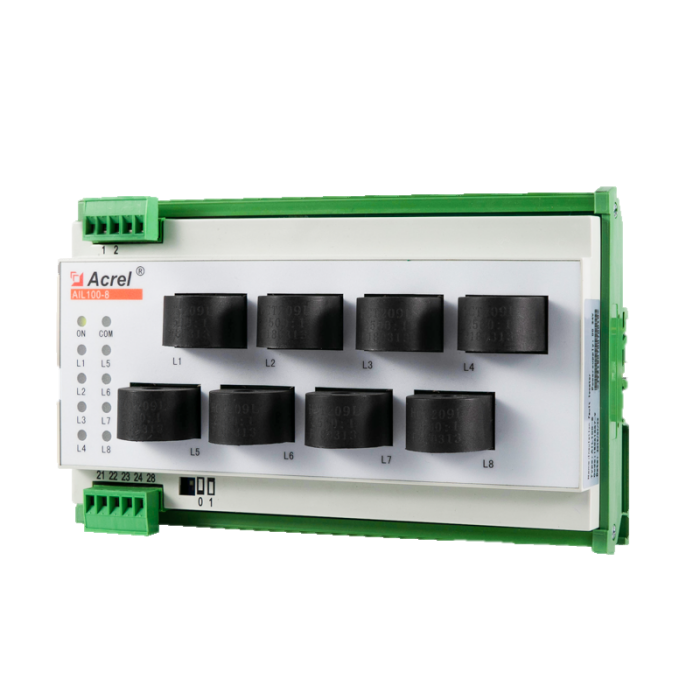

AIL150-8 Insulation Fault Locator
Main features：
• Function: Locating insulation faults in AC computer systems;
• Communication: Custom protocol;
• Channels: 8 measurement channels;
• Application: Hospital ICU, CCU;
• Standard and certificate: CE;
- Detalhes
- Parâmetros
- Documentos
1. General：
AIL150-8 8-channel insulation fault locator together with AIM-M300 intelligent medical insulation monitor and ASG150 test signal generator, are designed for insulation fault location in medical IT systems. The locating current generated by the ASG150 is detected using the integrated measurement current transformers and evaluated by the insulation fault locators.

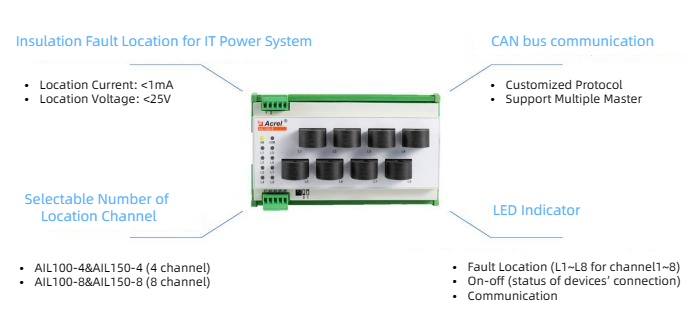

2. Functions:

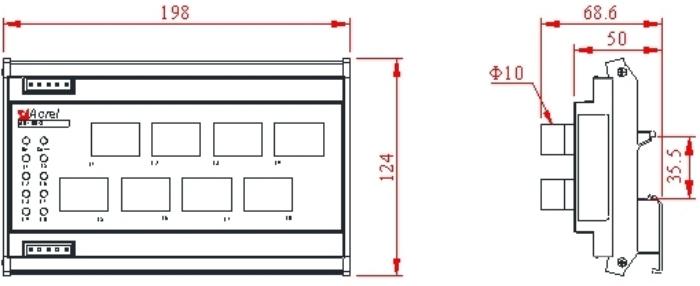

3. Dimension：

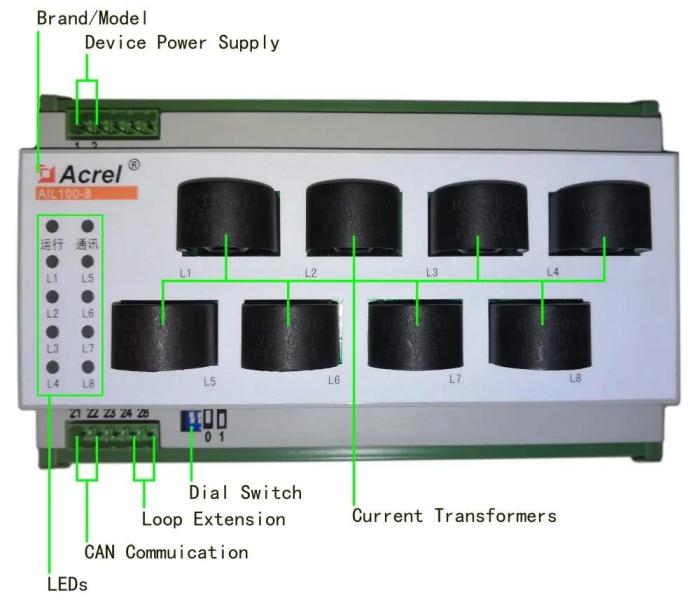

4. Front Panel:

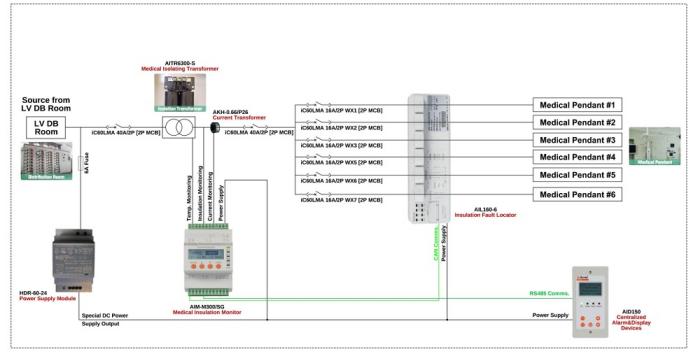

5. Wiring:

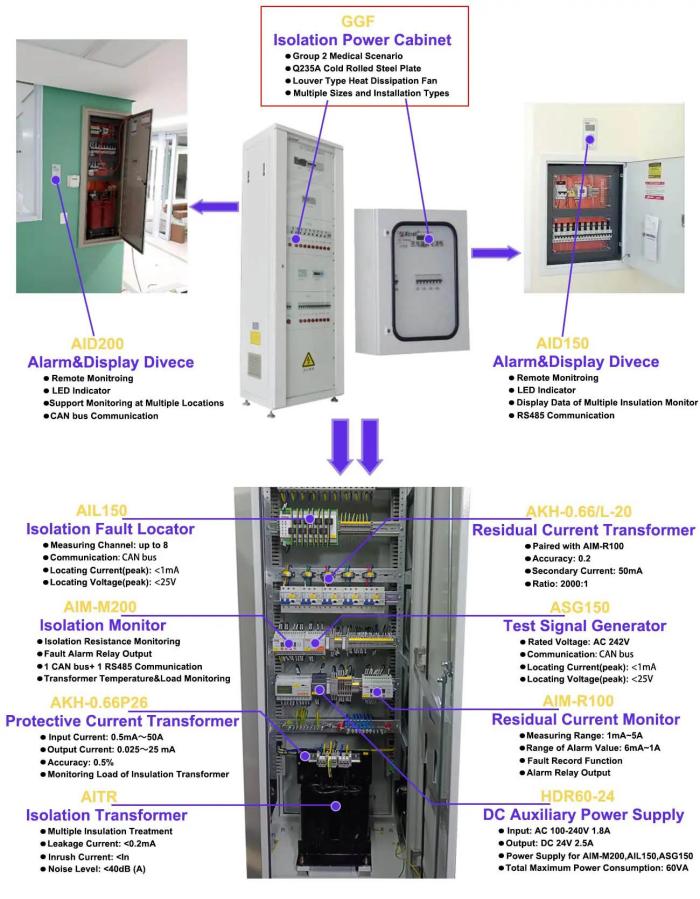

6.Solution sample:
