EMS-IDC Sistema de Gerenciamento de Eficiência Energética em Data Centers

The EMS-IDC data center energy efficiency management system creates real-time monitoring based on high, medium and low voltage distribution systems, diesel generators, UPS and power monitoring, PUE analysis and dynamic loop monitoring based on Terminal distribution system data acquisition to help data center managers understand data center power operation and focus on electrical and fire safety. Timely alert of anomalies to ensure the stable and reliable operation of data centers.

Application:

Applicable to Data Centers of Operators, Banks, New Media and Internet Enterprises.

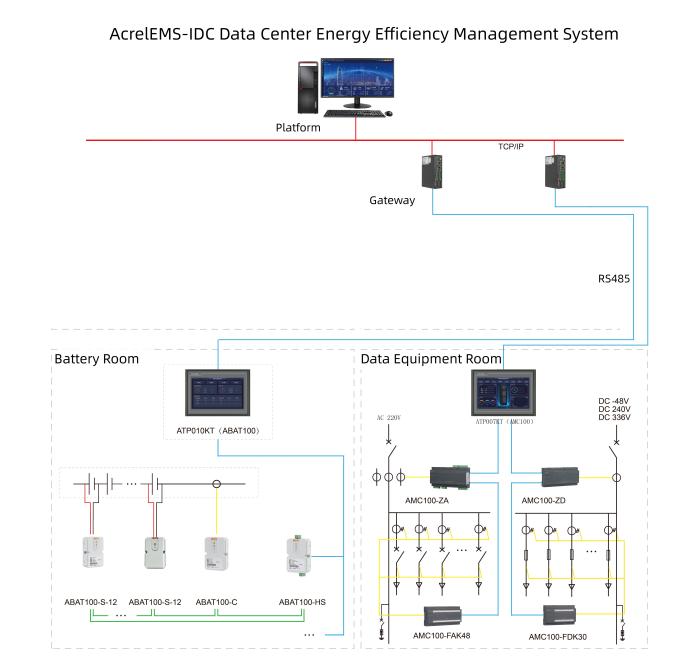

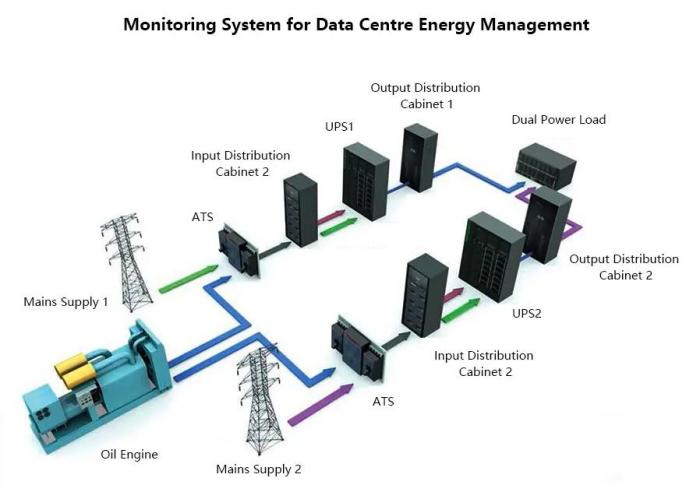

Structure:

Principal function:

①Independent monitoring modules for incoming line and outgoing line circuits.
②Can measure up to 2 incoming line circuits and up to 192 outgoing line circuits: current, voltage, power, energy and power quality.
③Centralized data monitoring and display via HMI and the data is uploaded to the energy and environment monitoring system via RS485.
④For 240V or 336V DC high voltage systems, an insulation monitoring module can be added to monitor the ground insulation resistance of the main bus.
⑤DC24V power supply for touch screen and outgoing line monitoring module (power supply from main module output).
⑥Communication: monitoring device by RS485, touch screen by RS485 or RJ45.
⑦Certificate: CE.

Human Machine Interface：

Product selection:

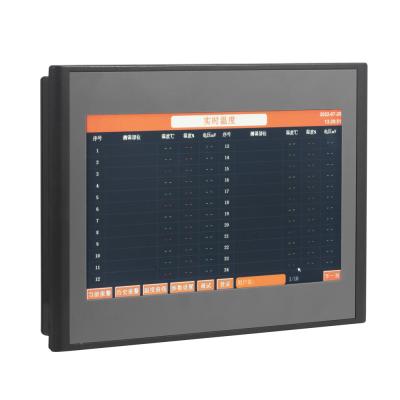

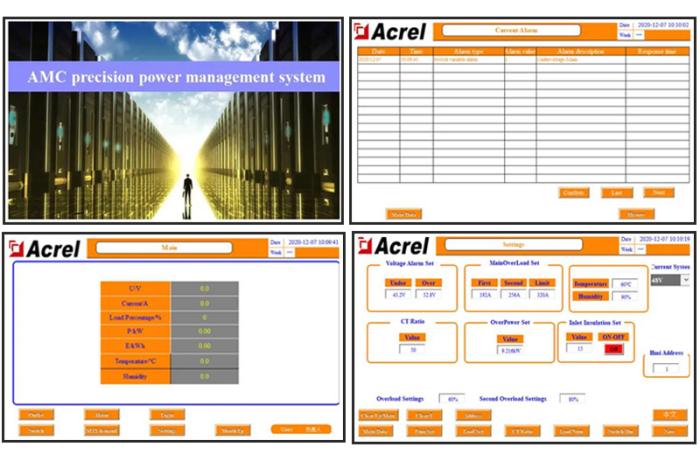

①ATP007kt ATP010kt HMI		• 7 or 10 inch touch screen; • Real-time monitoring and display of voltage, current, power, energy, power quality, switch status, wave curve, etc. of the bus bar; • Monitoring device alarm, communication and other parameters can be set on the screen; • 2 RS485 and 1 Ethernet, and data can be uploaded via RS485 or RJ45;

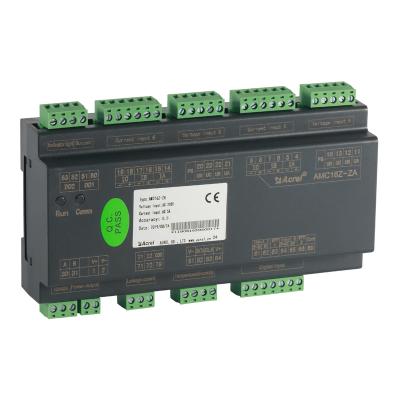

②AMC16Z-ZA AC Incoming Line Monitoring Module		• Specifically designed for server power supply management in the data center; • Independent 2-channel three-phase input A+B; • U, I, P, Q, S, PF, kWh, kvarh; • 2nd-63rd harmonic;
③AMC16Z-ZD DC Incoming Line Monitoring Module		• DIN 35mm; • Measurement: Independent circuits A+B, 6DI 2DO, 1 temp. and humidity; • With DC24V output power supply for line output module and touch screen; • Communication: RS485 Modbus-RTU;

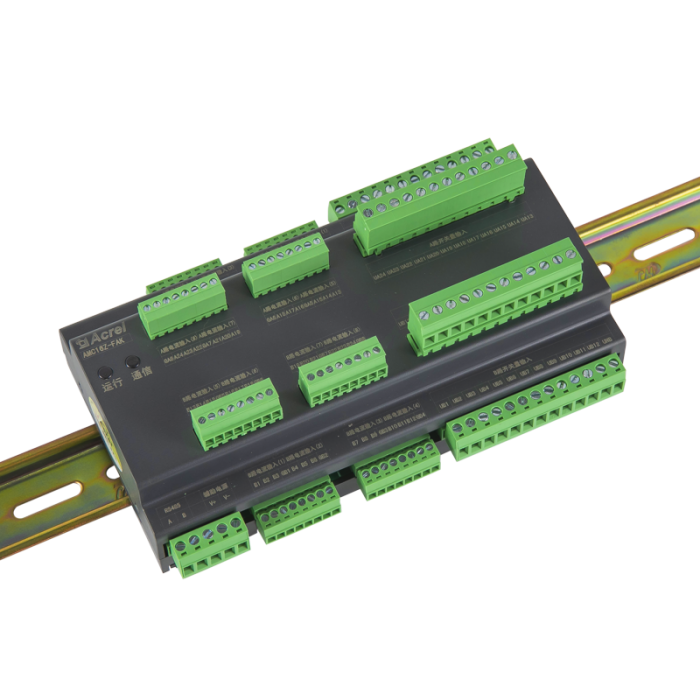

④AMC16Z-FAK24/48 AC Outgoing Line Monitoring Module		• Specifically designed for server power supply management in the data center; • Independent A+B 24 circuits (48 in total); • U, I, P, Q, S, PF, kWh, kvarh; • 2nd-31st harmonic; • kWh Class 0.5; • DIN 35mm;

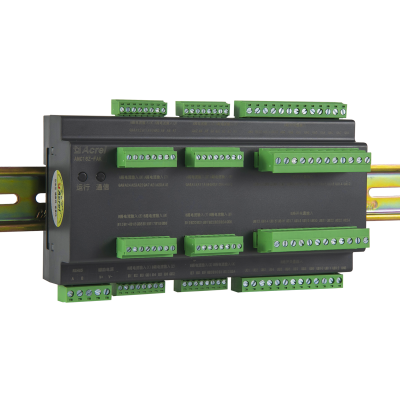

④AMC16Z-FAK24/48 DC Outgoing Line Monitoring Module		• DIN 35mm; • Can measure up to 24/48 DC outgoing line circuits; • DC24V power supply; • Communication: RS485 Modbus-RTU;

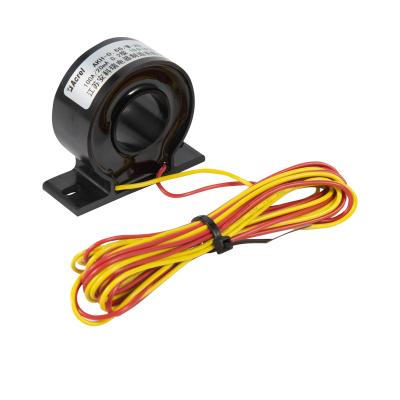

⑤AKH-0.66/W AC Outgoing Line Current Transformer		• urrent ratio: 100A/50mA; • Common specification: 100A/50mA;

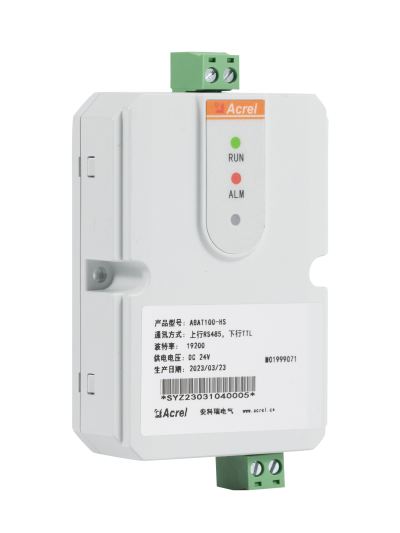

⑥ABAT100-HS Collector Module		• DC24V input, one to manage a group of batteries, up to 120 batteries in a group;

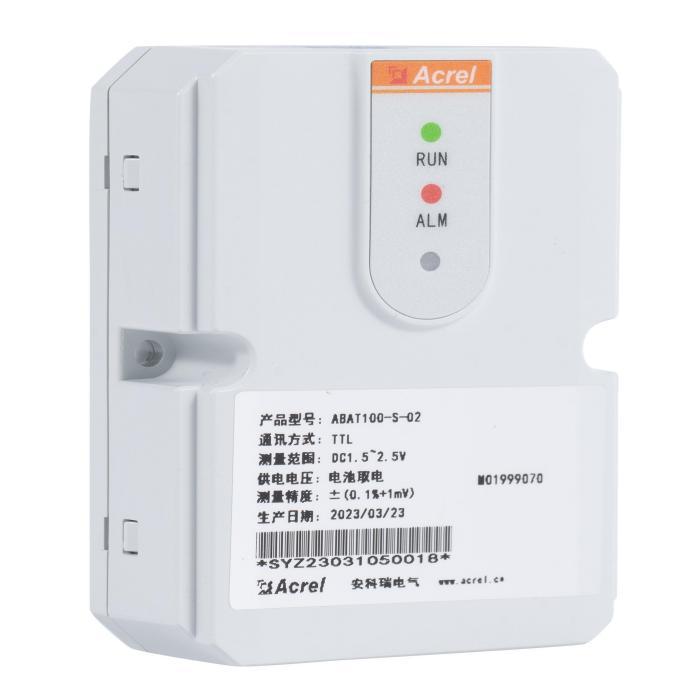

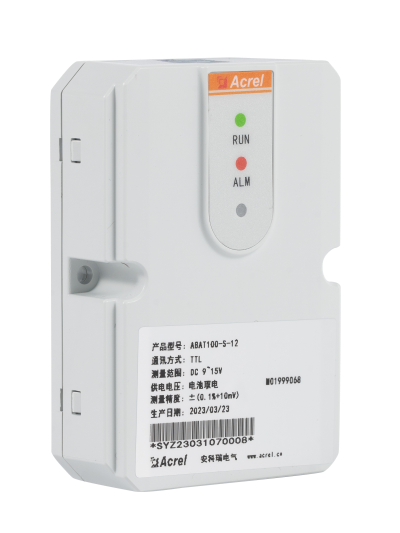

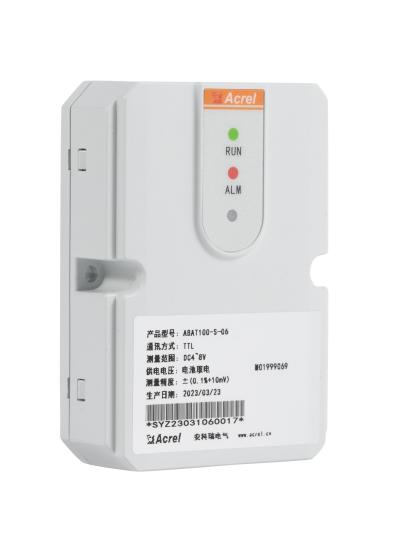

⑦ABAT100-S Single Battery Monitoring Module		• Monitor a 2V/6V/12V battery, monitor battery voltage, internal resistance and negative terminal temperature.
⑧ABAT100-C Battery Monitoring Module		• Monitor a charge/discharge current with an ambient temperature with a maximum current range of 1000A.

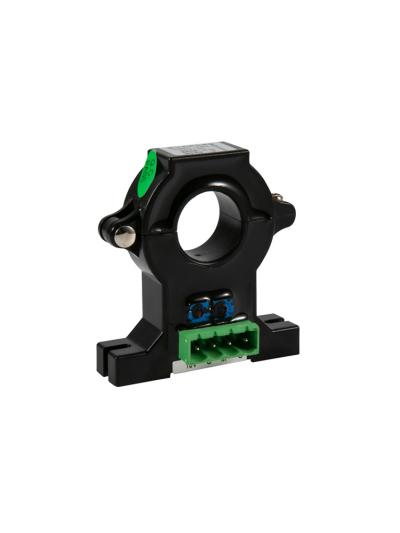

⑨AHKC-E Hall Sensor		Measurement: AC, DC, pulses and other complex currents;
