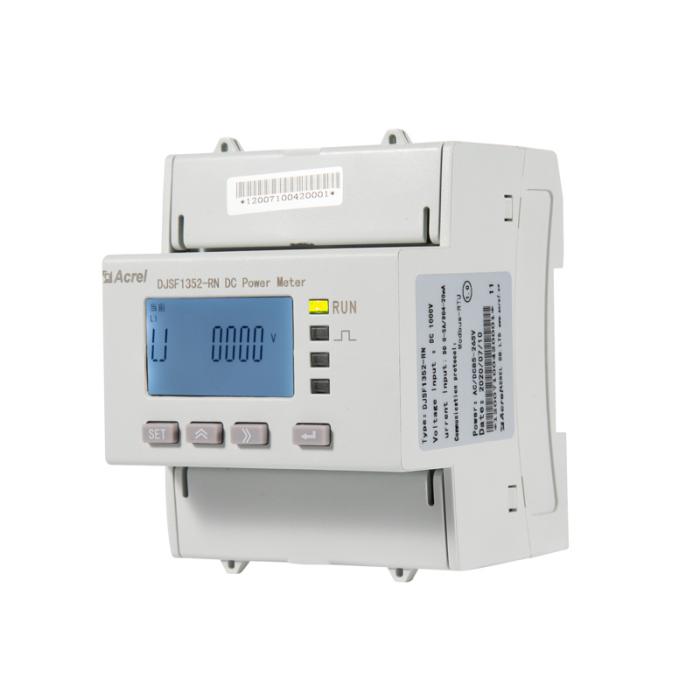

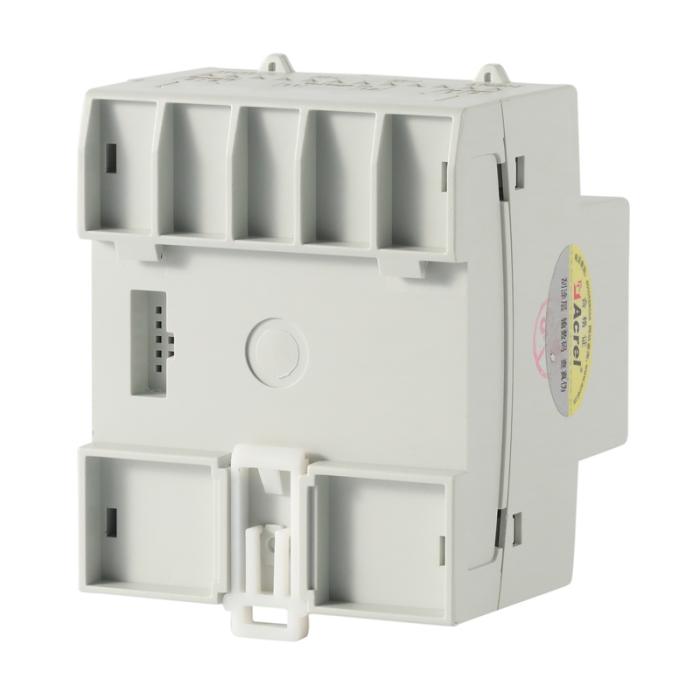

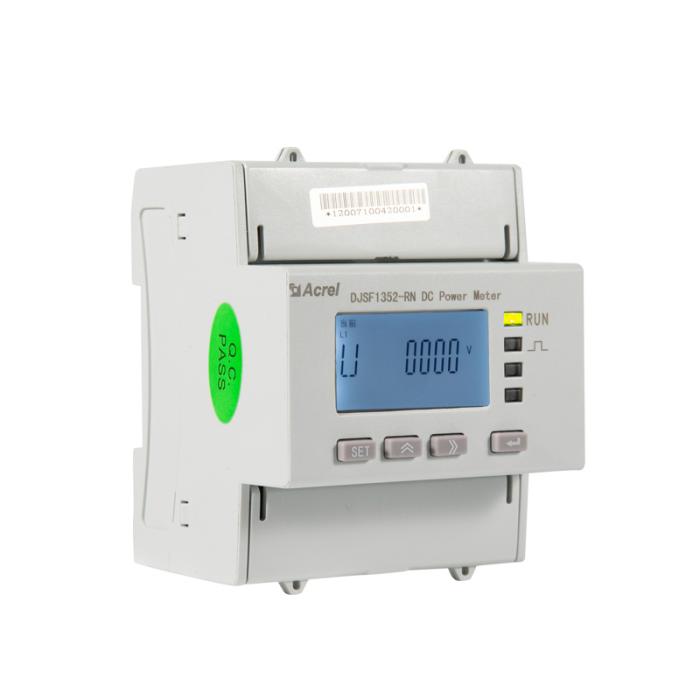

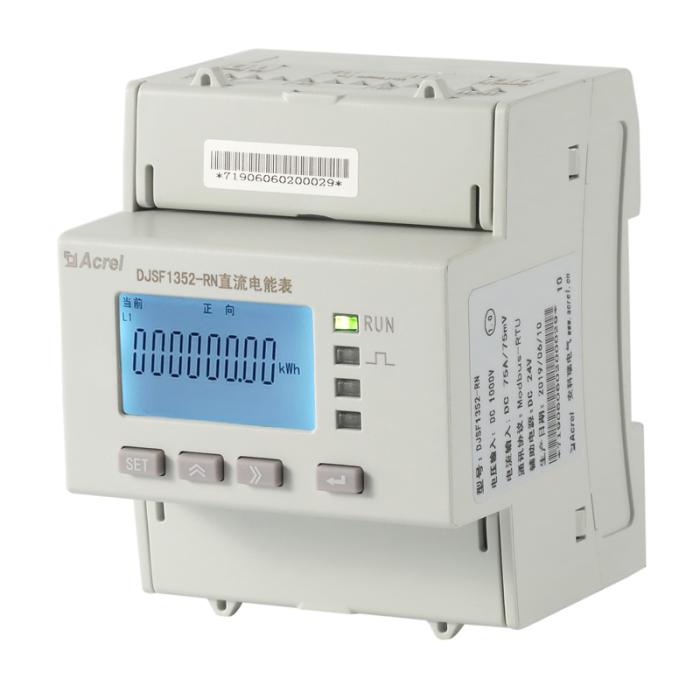

DJSF1352-RN UL DC Din Rail Energy Meter

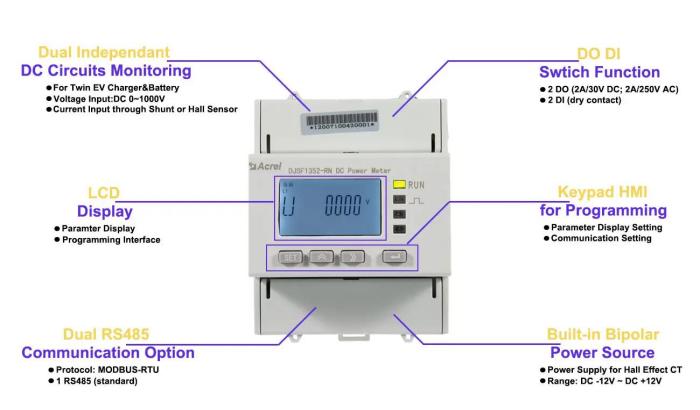

Main features：
• Rated voltage: 0~1000V DC;
• Rated current: 75 mV (with shunt); 4~20mA (with Hall sensor);
• Communication: RS485 (Modbus-RTU);
• Optional functions: D-DC dual circuit measurement;
S-Precision 0.5S bypass connection;
K-2DI/2DO;
2C-2 Channels RS485;
• Application: DC Battery; Electric vehicle charger; photovoltaic solar energy, etc.;
• Power supply: 85~265V AC/DC; 24V (±10%) DC; 48V(±10%) DC;
• Standard and certificate: UL; CE;
- Detalhes
- Parâmetros
- Documentos
1.General：
DJSF1352-RN rail-mounted DC energy meter with dual DC input channels, designed for telecom base stations, DC charging piles, solar photovoltaics and other applications. This series of meters can measure voltage, current, power and forward and reverse energy, etc. ignition in the DC system. In actual site use, this meter can measure total power, but also measure energy within a specific time period. Test results can be used for local display, but also with industrial control equipment and computers to form a measurement and control system.
2. Functions:

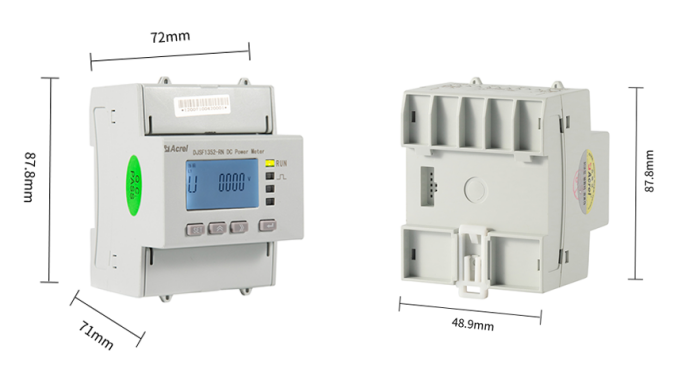

3. Dimension：

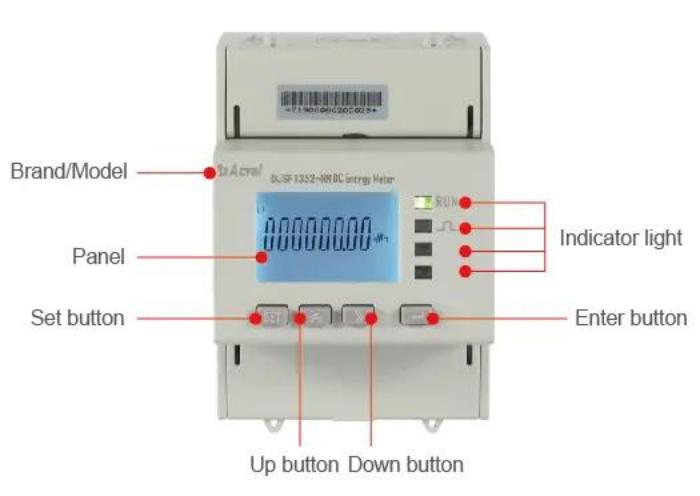

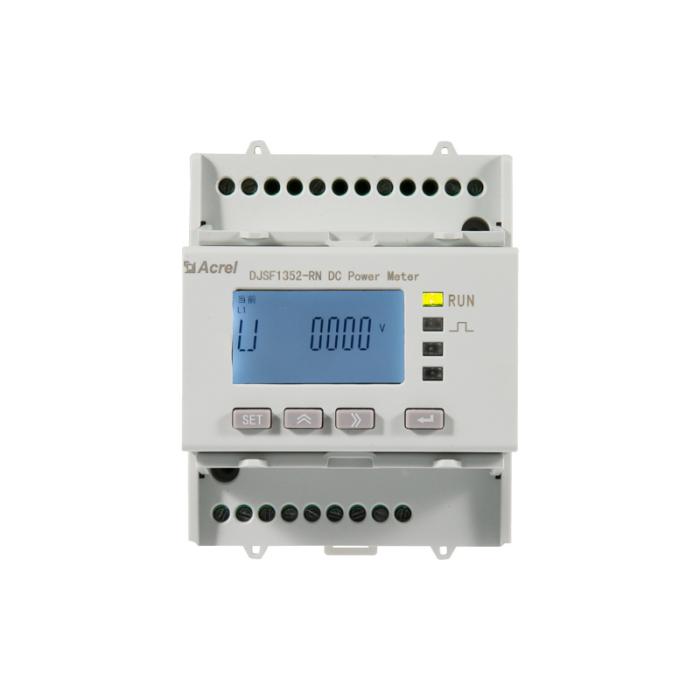

4. Front Panel:
5. Wiring:

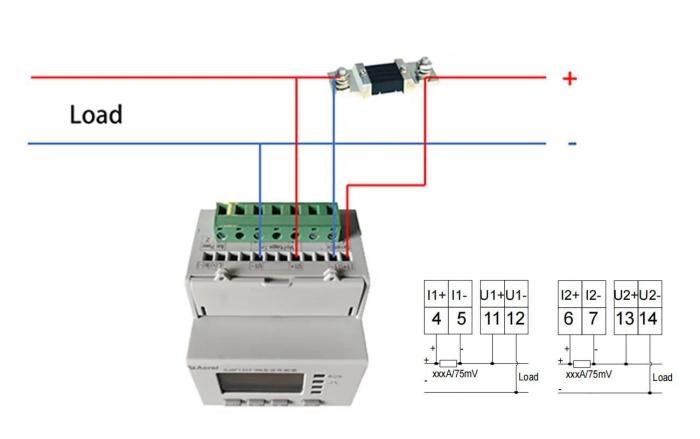

With shunt:
With Hall sensor:

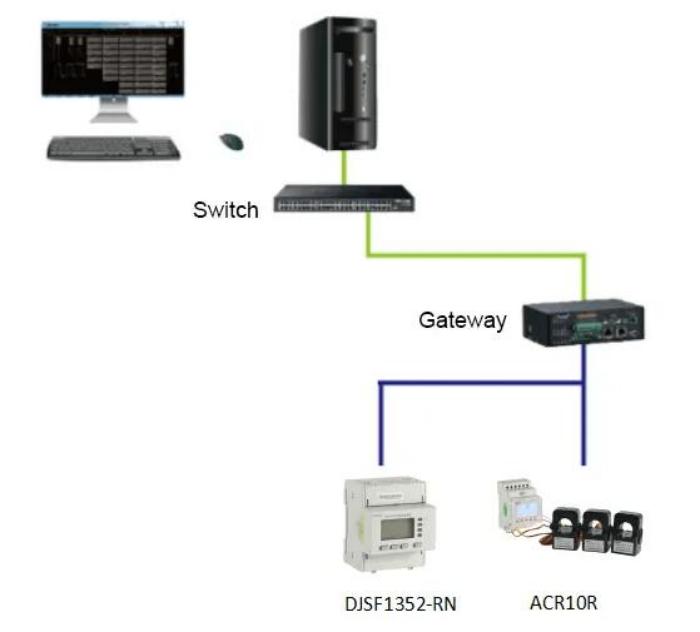

6. Network:

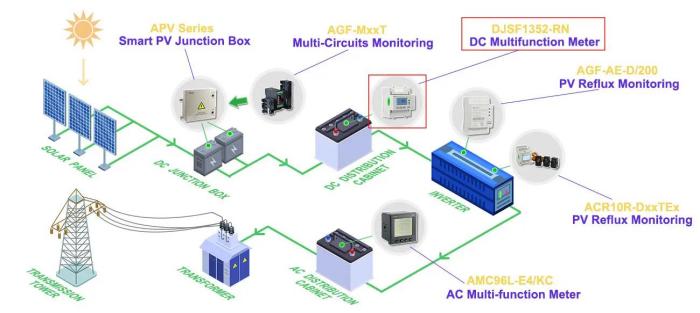

Application in solar system:

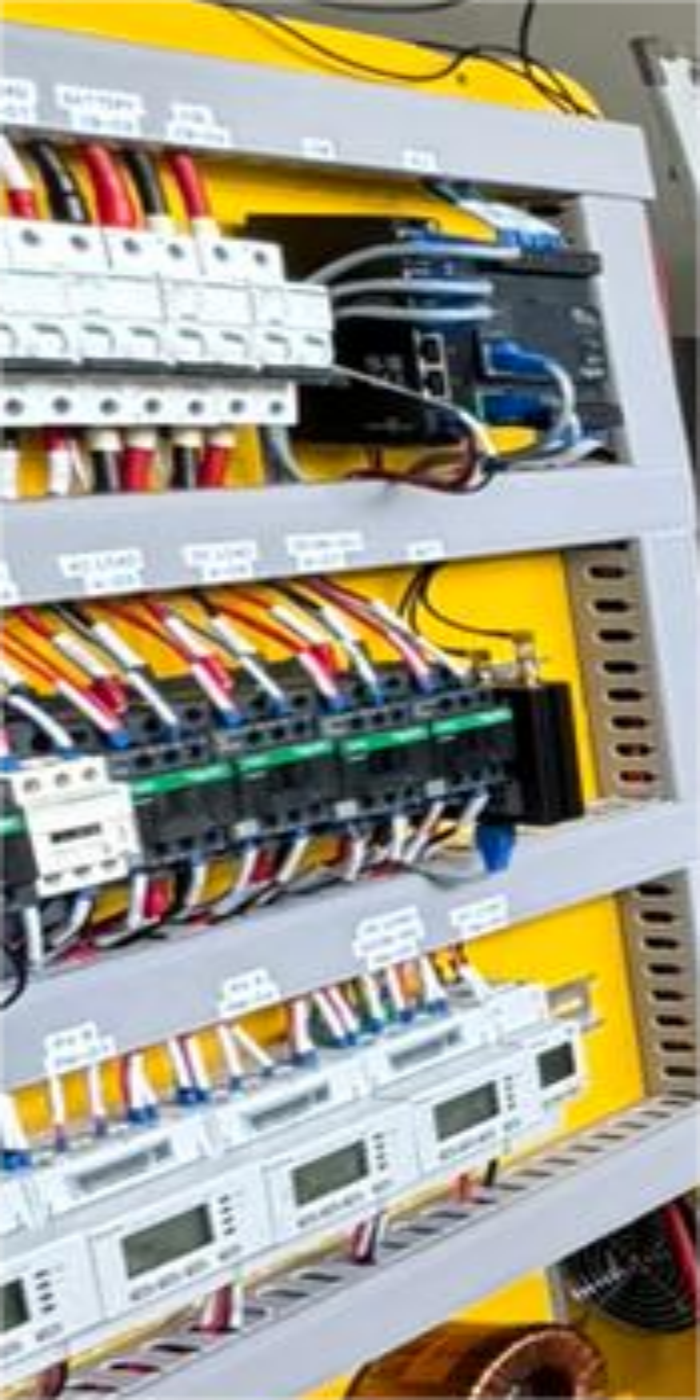

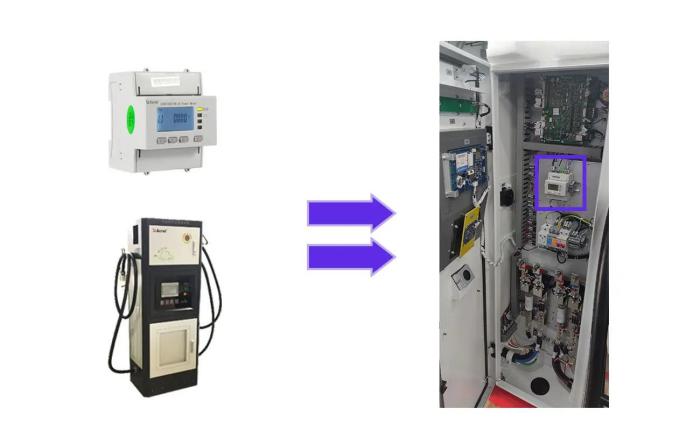

7. Photo on site:
