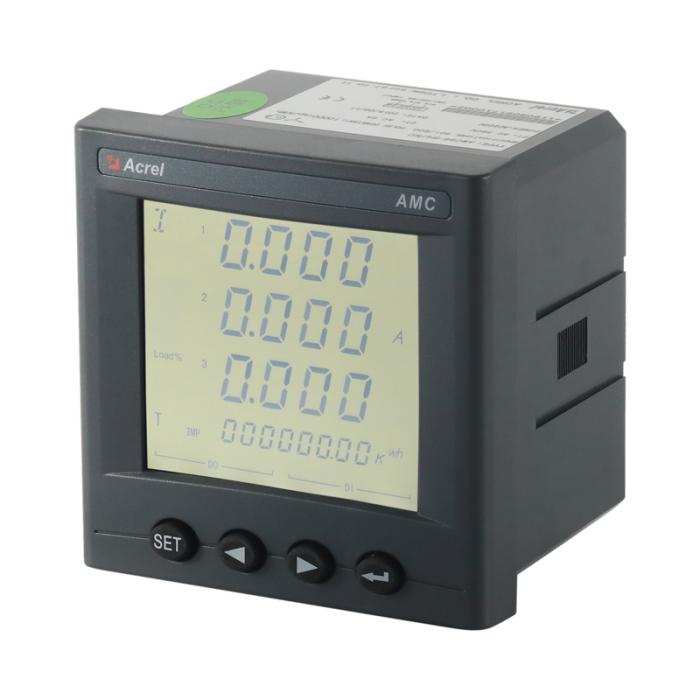

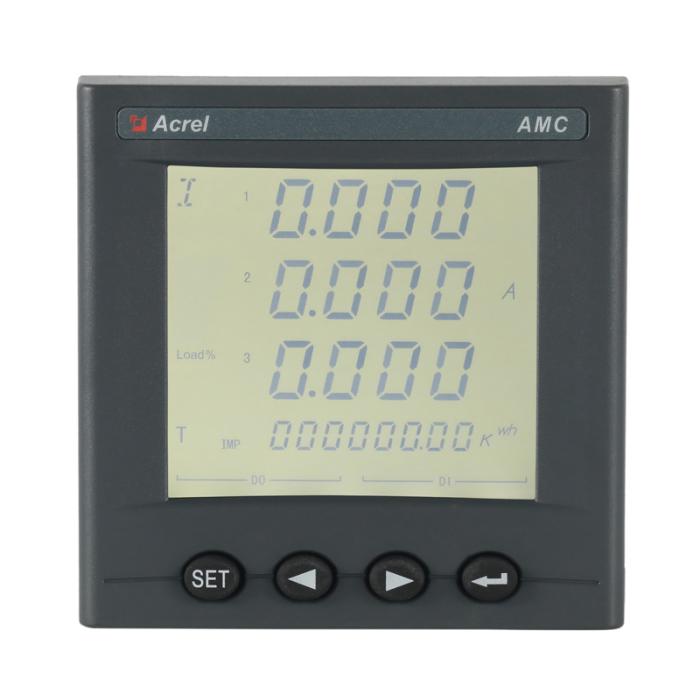

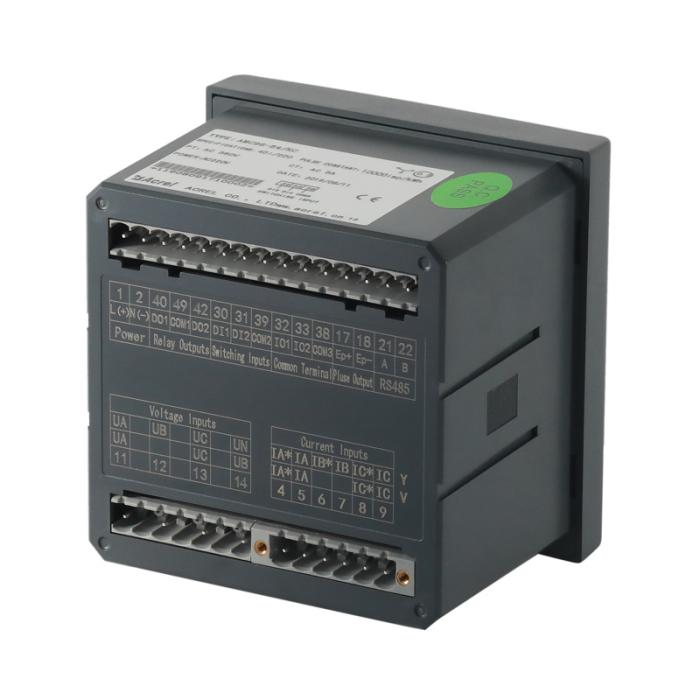

AMC96L-E4/KC Three Phase Multifunction Panel Energy Meter

< >

Main features：

• Rated voltage: 400V or 660V AC L-L (direct connection); 100V AC L-L (via PTs);

• Rated current: 5A or 1A AC (via CTs);

• Communication: RS485 (Modbus-RTU);

• Optional functions: M-Analog output: 4~20mA DC or 1~5V DC

C-RS485 Communication (MODBUS-RTU)
H-Harmonic measurement: 2~31st and total harmonic;
K-DI/DO function: 2/4 channel DI and 2 channel DO;
F-SOE Function: Event, demand and extreme registration;

• Power supply: 85~265V AC/DC; 24V or 48V DC

• Standard and Certificate: CE; IEC; EAC; RoHS

Cotação

Detalhes
Parâmetros
Documentos

1.General：

AMC is a smart meter designed for the energy monitoring needs of electrical systems, industrial and mining companies, utilities and smart buildings. At the same time, it has a variety of peripheral interface functions for users to choose: with RS485 communication interface; with 4-20 mA analog output; with switch input and relay output. Adopt high-brightness LED/LCD display interface, perform configuration and parameter control by buttons, this meter is ideal for real-time energy monitoring system. This meter has been widely used in various control systems, SCADA system and energy management system.

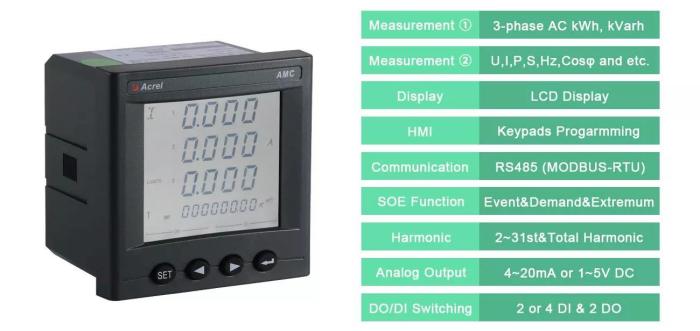

2. Functions:

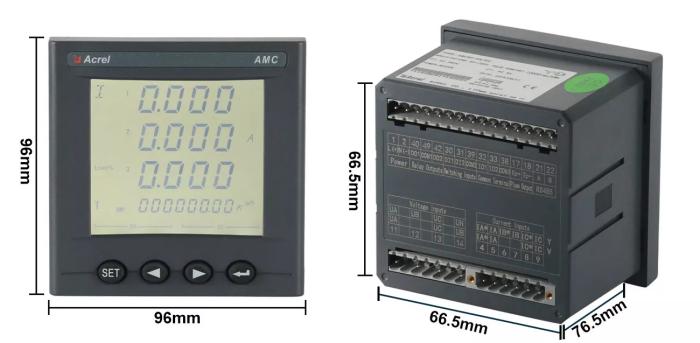

3. Dimension:

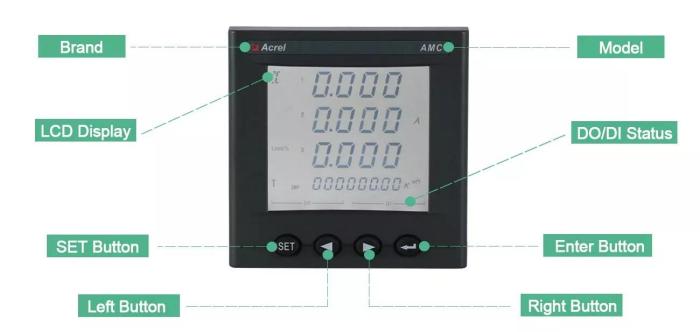

4. Front Panel:

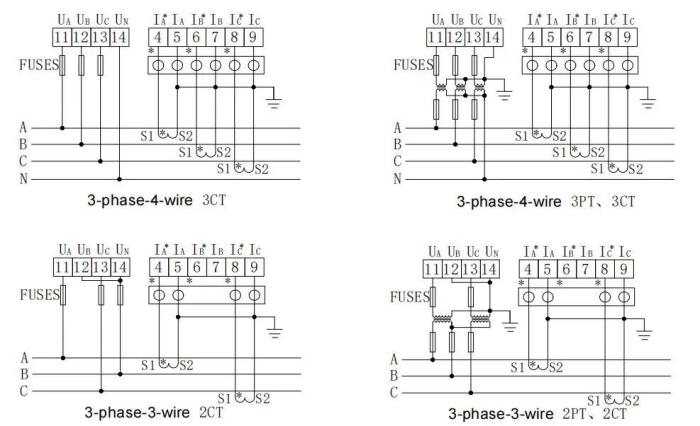

5. Wiring:

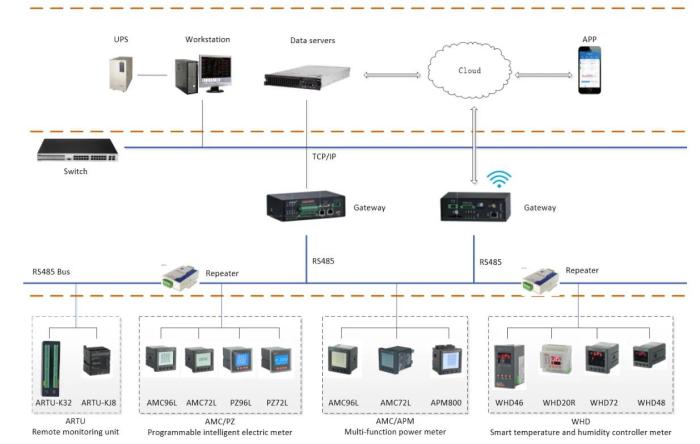

6. Network:

Technical parameters				Value
Input		Connection		Single phase-2-wire, 3-phase-3-wire, 3-phase-4-wire;
		Frequency		45-65Hz
		Voltage		Rating: single-phase :AC 100V,400V Three-phase: AC 3×57.7V/100V(100V),3×220V/380V(400V),3×380V/660V(660V)(96 size only);
				Overload:1.2 fold rating(continuous):2 fold rating for 1 second;
				Power consumption:< 0.5VA;
		Current		Rating: AC1A,5A
				Overload:1.2 fold rating(continuous);10 fold rating for 1 second;
				Power consumption:< 0.5VA;
Output		Electric energy		Output mode:open-collector photo-coupler pulse;
				Pulse constant: 10000imp/kWh(settable),see wiring diagram for details;
		Communication		RS485port, Modbus -RTU protocol,DLT645 protocol(versions 07 and 97); Baud rate 1200 ~ 38400;
Function		Switching input		Dry contact input, built-in power supply; if the model is KA, it is AC 220V active;
		Switching output		Output mode: Relay normally open contact output;
				Contact capacity: AC 250V/3A, DC 30V/3A;
		Analog output		4 - 20mA
Accuracy class				Frequency: 0.05Hz;Current,Voltage: 0.2 class;Reactive power: l .0 class;Reactive Electric energy: l .0 class; Active power: 0.5 class; Active electric energy: 0.5 class;2° - 31° Harmonic measurement: ±1%;
Power supply				AC/DC 85-265V or DC24V（±20%）or DC48V(±20%); Power consumption≤10VA;
Security	Power frequency withstand voltage			Between Power supply//Switching Output// Current Input//Voltage Input and Transmitting// Communication //Pulse Output//Switching input AC 2 kV 1min; Between Power supply, Switching output,Current Input, Voltage Input AC 2 kV 1min; Between Transmitting,Communication,Pulse Output, Switching input AC 1kV 1 min;
	Insulation resistance			Input,Output end to machine enclosure >100MΩ;
Environment			Temperature	Work: -25°C~+65°C; Storage:-40°C ~+80°C;
			Humidity	≤93%RH Non-condensing;
			Altitude	≤2500m

Previous: No more
Next: No more

Produtos Relacionados

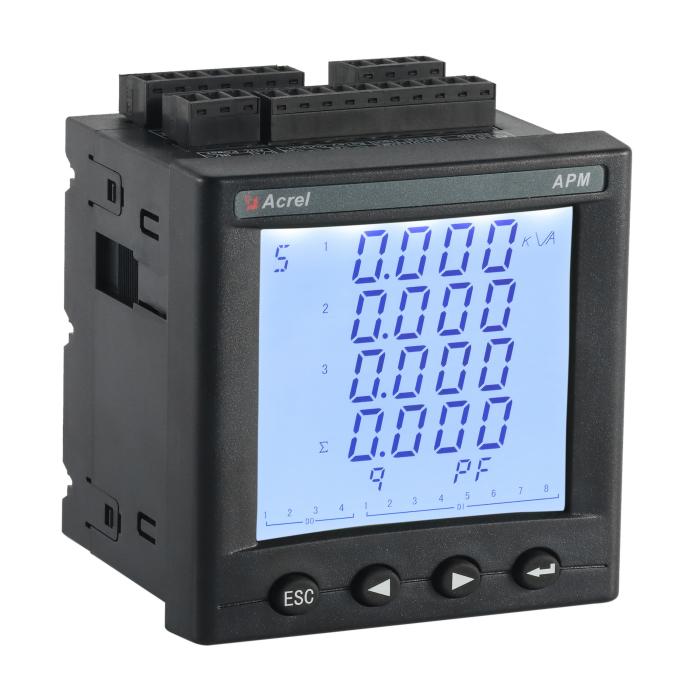

APM800 Multifunction Panel Energy Meter
