AMC72(L)-AI AC Single Phase Digital Ammeter

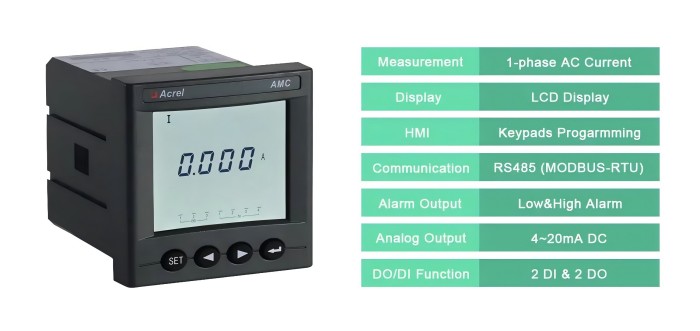

Main features：
• Measurement: AC single-phase current;
• Accuracy: 0.5%;
• Rated current: 1/5A AC(via CT);
• Power supply: 85~265V AC/DC;
• Communication: RS485(MODBUS-RTU);
• Alarm output: low and high current alarm;
• Analog output: 4~20mA DC;
• DI/DO function: 2 DI and 2 DO;
• Standard and certificate: CE;
- Detalhes
- Parâmetros
- Documentos
1. General：

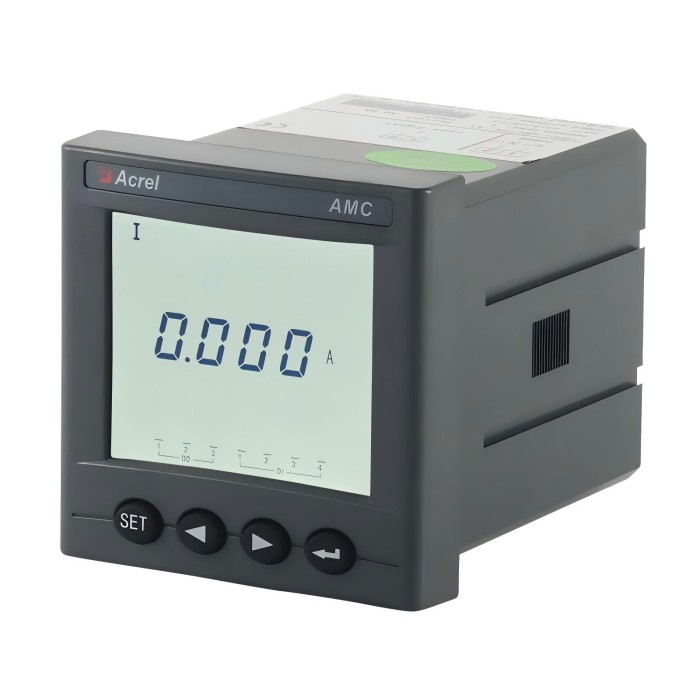

AMC72(L)-AI 72x72 type panel ammeter with LCD/LED display can measure single-phase AC current, with multiple additional functions.
2. Functions:
Additional functions:
|
C |
RS485 Communication |
|
M |
Analog output 4-20mA |
|
J |
Alarm output |
|
K |
2DI&2DO switching output |
|
2M |
2 Channels analog output 4-20mA |
|
KM |
2DI&2DO switching output +Analog output 4-20mA |
|
MC |
Analogoutput + RS485 communication |
|
CJ |
RS485 communication +Alarm output |
|
KC |
RS485 communication +2DI&2DO switching output |
|
JKC |
Alarm output +RS485 communication +2DI&2DO switching output |
|
JMC |
Alarm output +Analog output 4-20mA +RS485 communication |

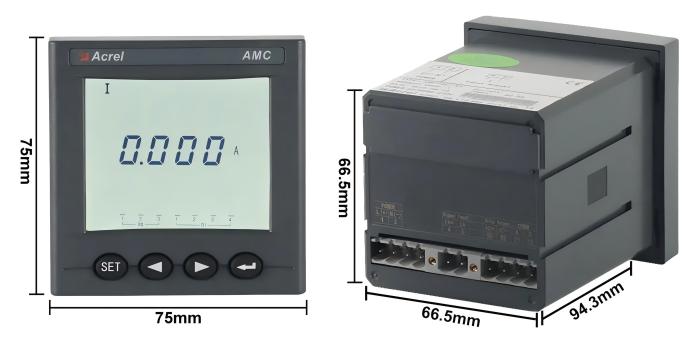

3. Dimension:

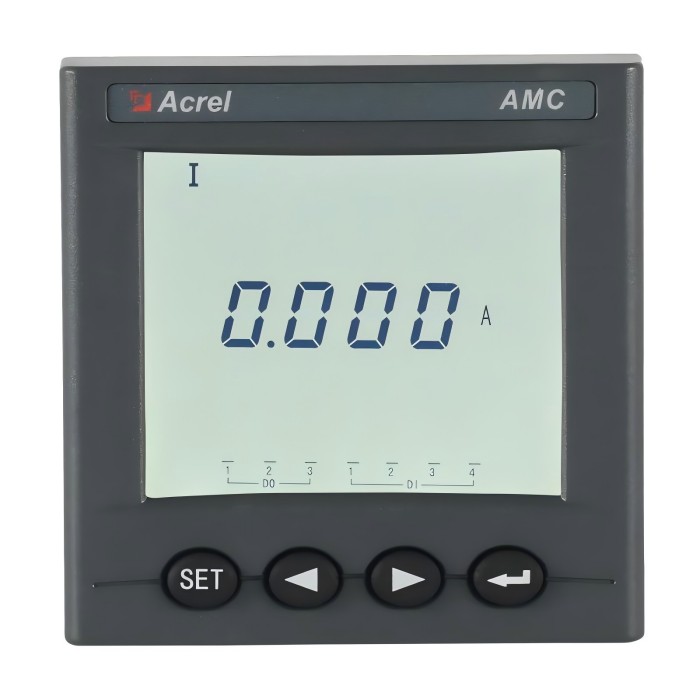

4. Front Panel:

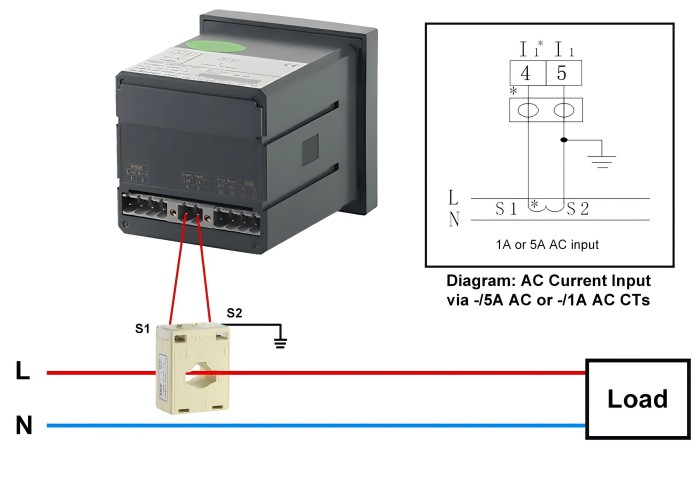

5. Wiring:
6. Network:
