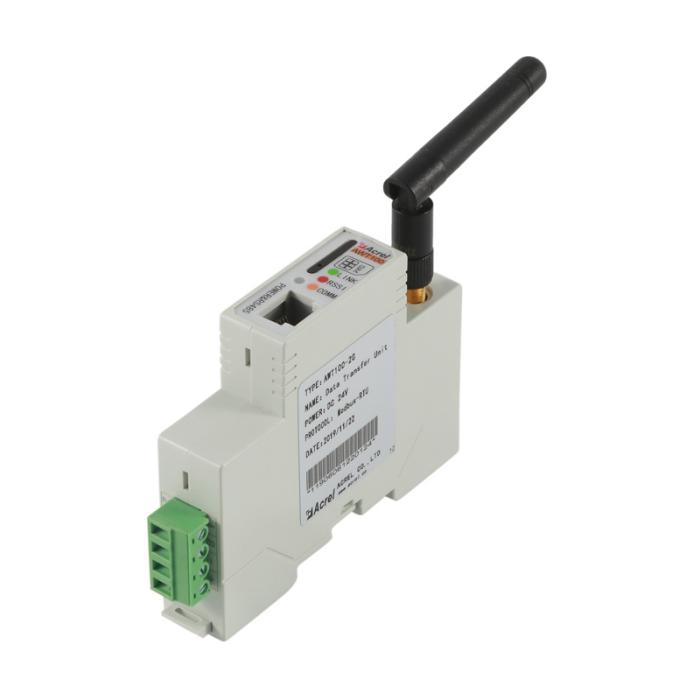

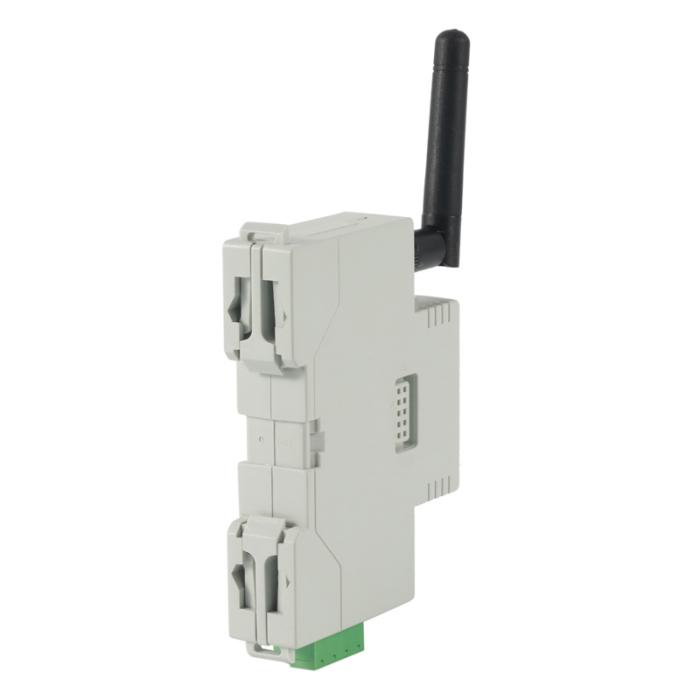

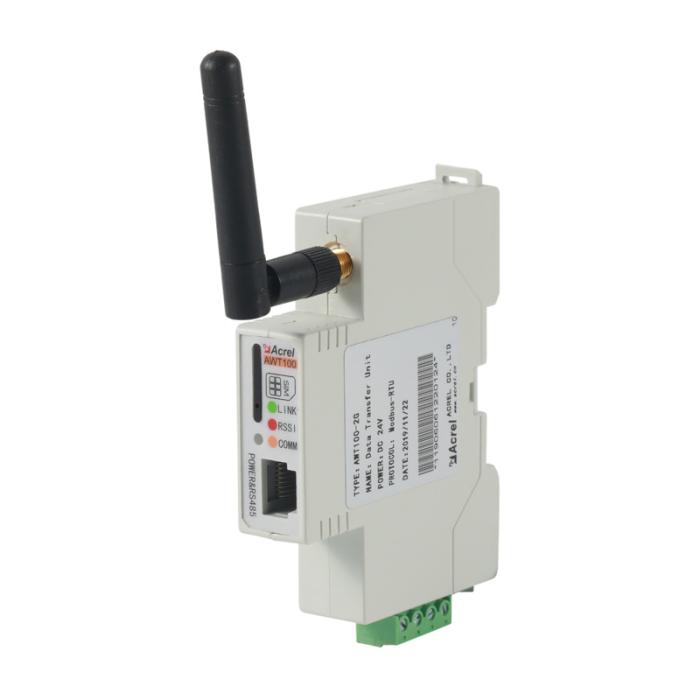

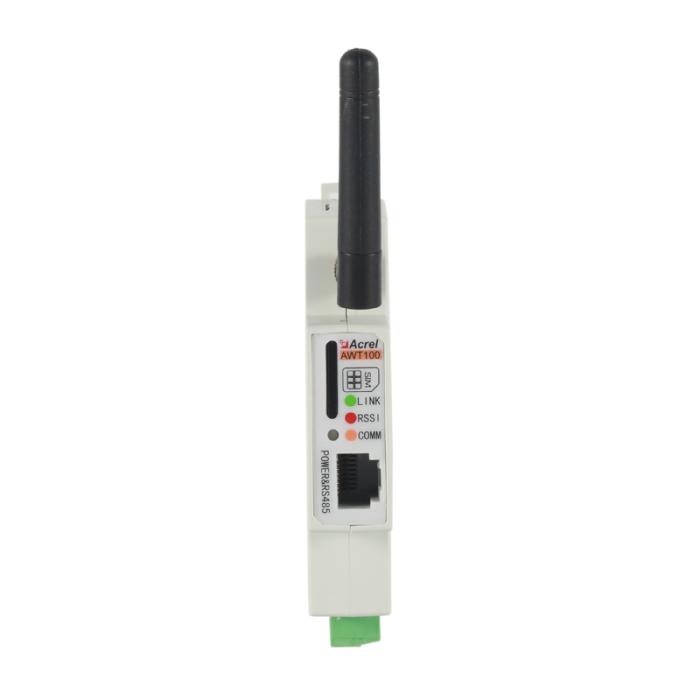

AWT100-WiFiHW WiFi Wireless Communication Terminal
Main features：
• Upstream Methods: WiFi;
• Downstream methods: RS485 interface;
• Upstream protocol: MODBUS-TCP, MQTT;
• Downstream protocol: MODBUS-RTU
• Collect data from up to 30 devices;
• Power supply: 24V DC(default); 85~265Vac/Vdc(via AWT100-POW module);
• Standard and Certificate: CE; IEC;
- Detalhes
- Parâmetros
- Documentos
1.General：
AWT100 data conversion module includes 2G, 4G, NB, LoRa, LoRaWAN, GPS, WiFi, Ethernet, DP and other communication methods. The downlink interface provides a standard RS485 data interface. It can be easily connected to energy meters, RTU, PLC, industrial computers and other equipment, and only needs to complete the initial configuration at a time to complete the data collection of MODBUS equipment; At the same time, the AWT100 series of wireless communication terminals has the reliable and stable performance, using powerful microprocessing chip to cooperate and built-in surveillance technology.

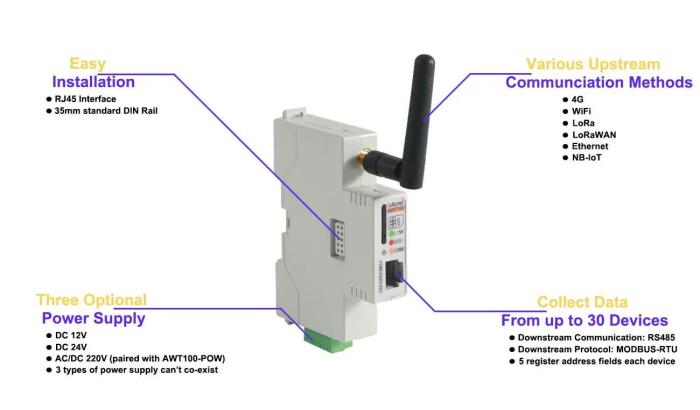

2. Functions:

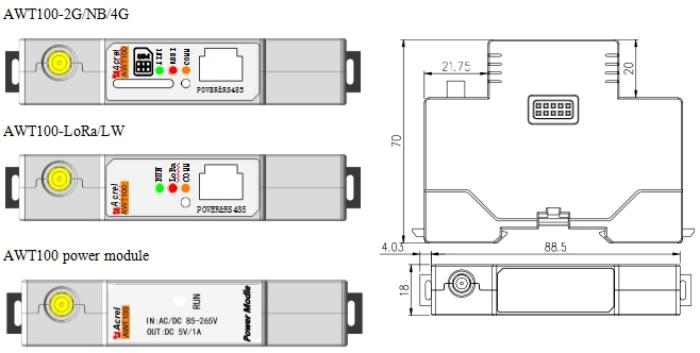

3. Dimensions:

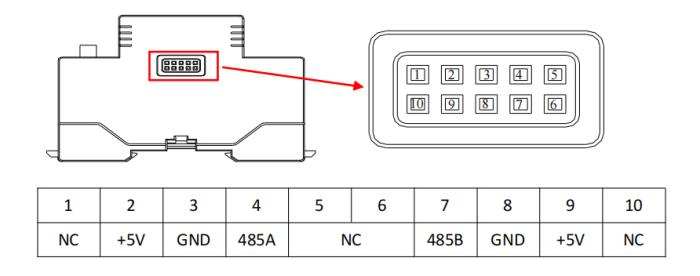

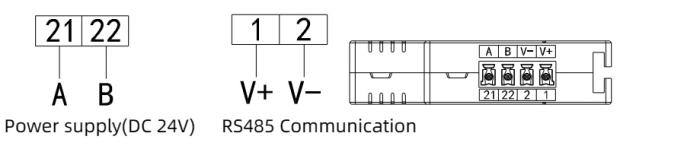

4. Wiring Terminals:
5. Wiring:
24VDC power supply via default configuration:

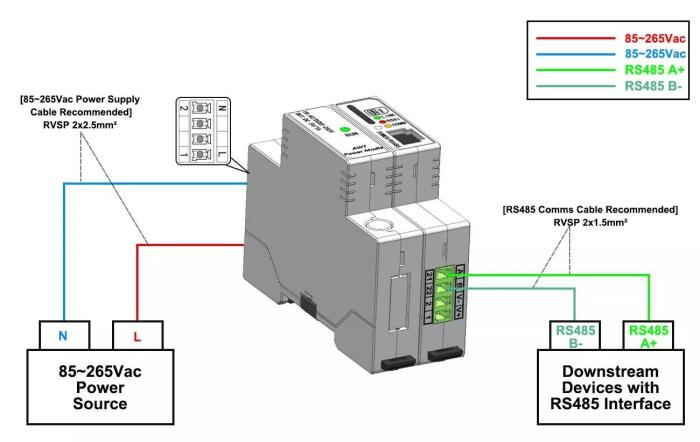

85~265VAC power supply via AWT100-POW power module:

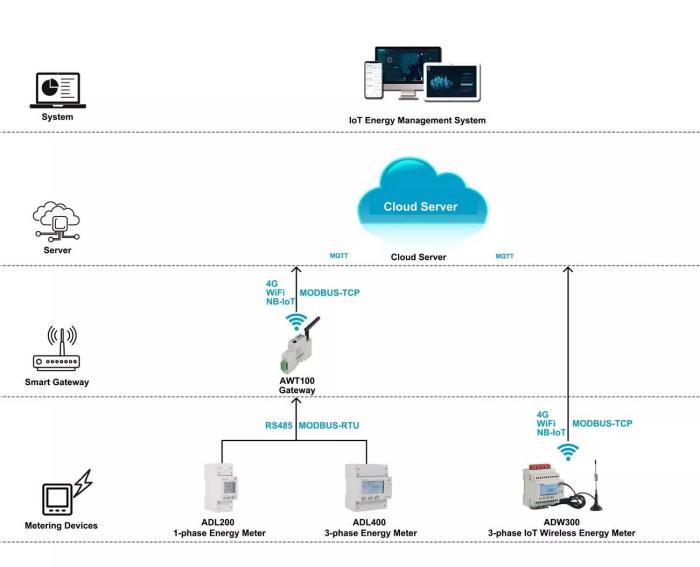

6. Network:
