AKH-0.66/K-Φ Split Core Current Transformer

< >

Main features：

• Primary current input: 5~1000A AC;

• Rated voltage: 660V AC;

• Accuracy: Class 0.5/1;

• Diameter: 24mm, 36mm, 50mm;

• Suitable for electricity renovation project;

• Standard and Certificate: CE; UL; RoHS;

Cotação

Detalhes
Parâmetros
Documentos

1.General：

The product has a beautiful appearance and is easy to install and wire. It is mainly used in power operation and maintenance and power transformation projects. The general output is AC 5A, 1A or mA and other signals. It has the advantages of small size, high precision, large loading capacity, easy installation, etc., and is suitable for user modification projects.

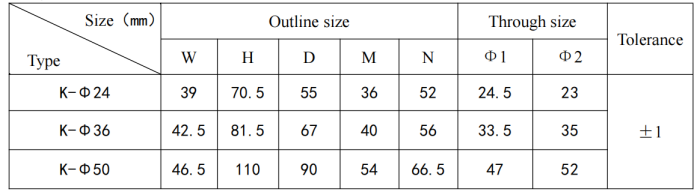

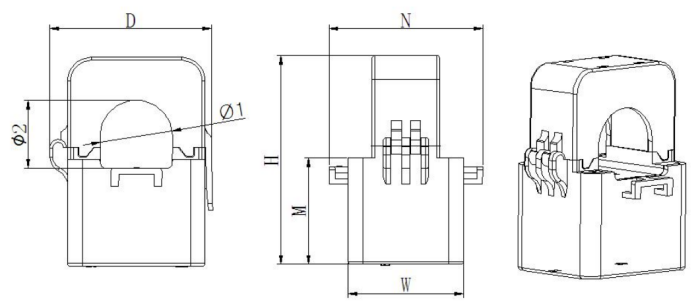

2.Dimension:

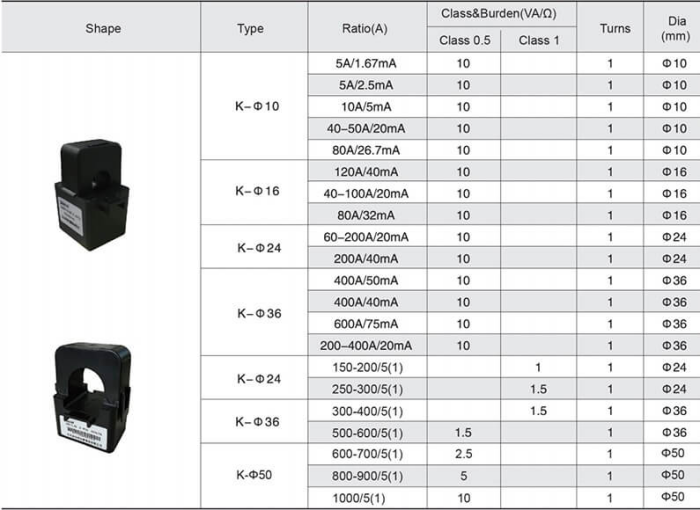

3.Specification:

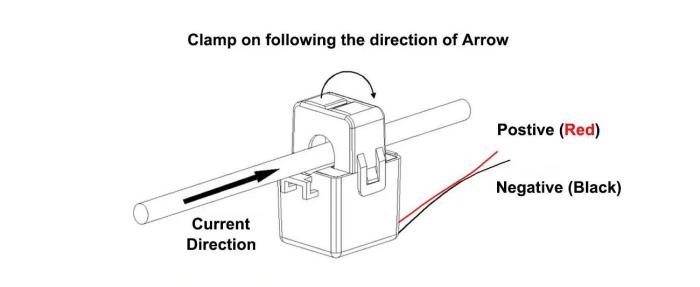

4.Installation:

Type	Ratio(Primary current/secondary current)	Precision degree and corresponding rated load (VA)		Circle	Hole size (mm)	Voltage
K-Φ10	5A/1.25mA	10		1	Φ10	3kV
	(10~20)A/5mA
	(40~60)A/20mA
K-Φ16	(20~50)A/10mA				Φ16
	(40~100)A/20mA
	100A/40mA
K-Φ24	(60~200)A/20mA				Φ24
	(100~250)A/40mA
	400A/100mA
	(150-200)/5(1)A		1
	(250-300)/5(1)A		1.5
K-Φ36	(100~200)A/10mA	10			Φ36
	(200~400)A/20mA
	(300~600)A/100mA
	400A/40mA
	600A/75mA
	(300-400)/5(1)A		1.5
	(500-600)/5(1)A	1.5
K-Φ50	(500-700)A/5(1)A	2.5			Φ50
	(800-1000)A/5(1)A	5
