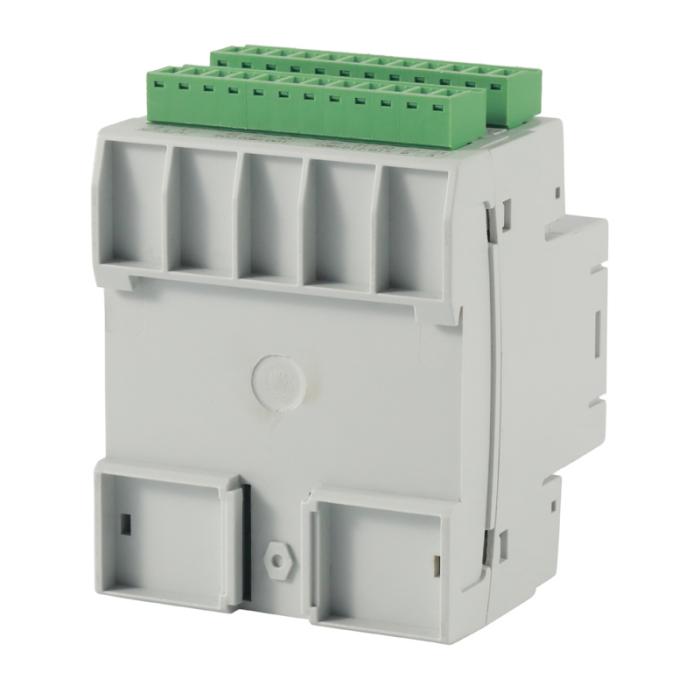

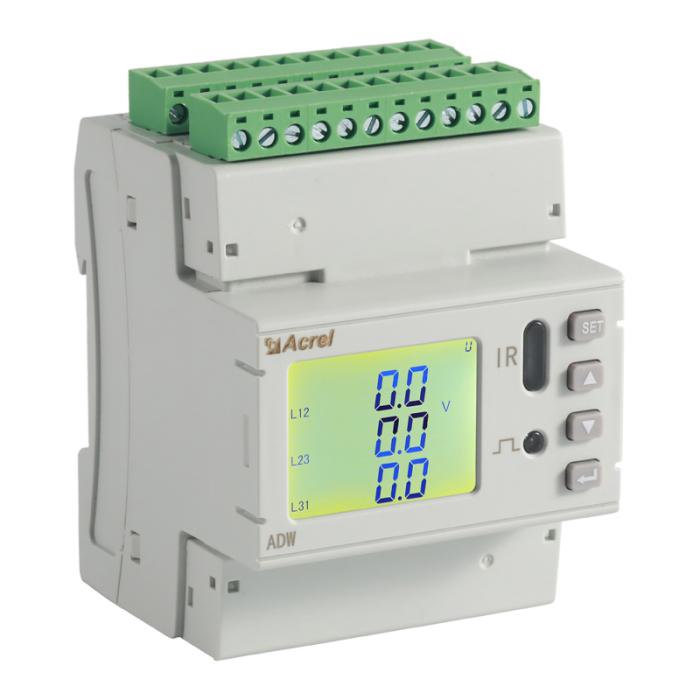

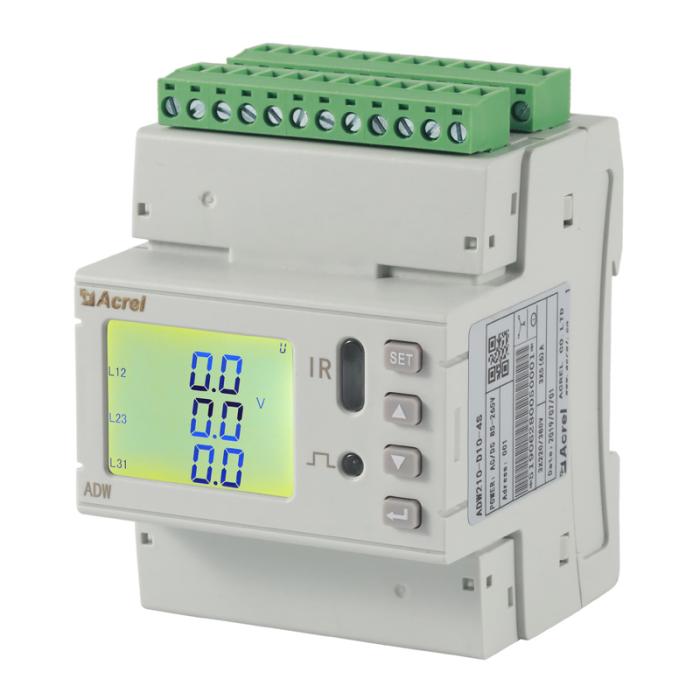

ADW210 IoT Multicircuit Energy Meter

< >

Main features：

• Monitoring: Up to 4 three phase circuits or 12 single phase circuits;

• Rated voltage: AC 3x220V/380V;

• Rated current: 5A, 100A, 400A or 600A AC (with external CTs);

• Communication: RS485 (MODBUS-RTU);

• LCD Display;

• Standard and Certificate: CE;

Cotação

Detalhes
Parâmetros
Documentos

1. General：

ADW2XX rail type multi-circuit power meters are mainly used to measure the complete electrical parameters of multiple three-phase circuits. They can be connected to the current input of up to four three-phase circuits at the same time. It can measure voltage and current, power, power factor, phase angle, unbalance, harmonics and other parameters.

2. Functions:

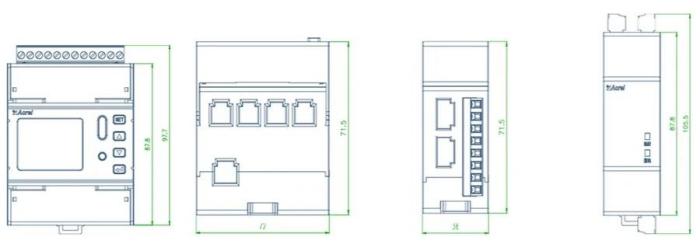

3. Dimension：

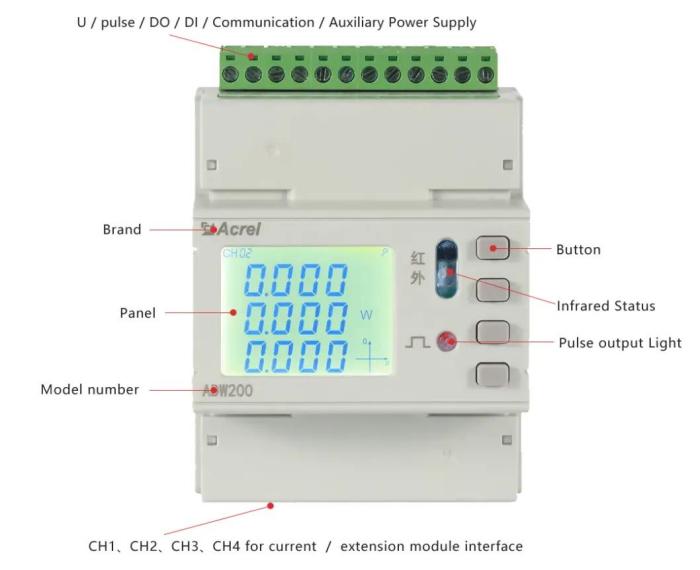

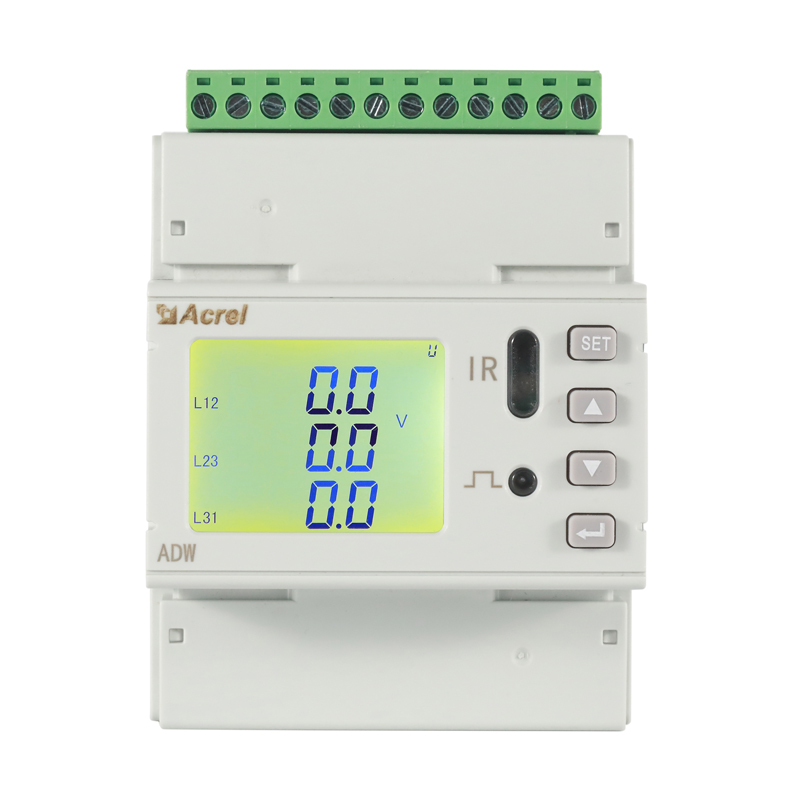

4. Front Panel:

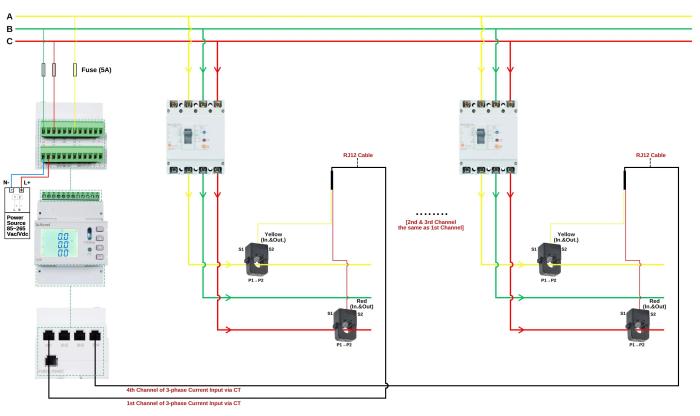

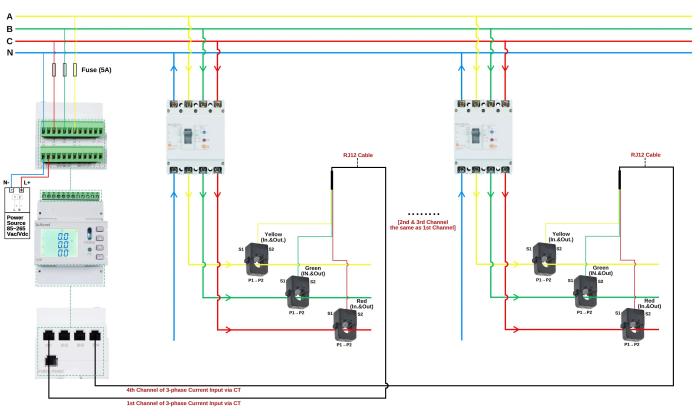

5. Wiring:

3P3W	3P3W

1. Main model functions:

Auxiliarypower			AC/DC 85~265V; power consumption≤10VA;
Input signal	Frecuencia		45～65Hz；
	Voltage		Rated:AC 3×220V/380V;
			Overload: 1.2 times the nominal value (continuous); 2 times nominal value/1 second;
			Power consumption: ≤0.5VA (each channel);
	Current		Rated:AC 5A, 100A, 400A, 600A; (with external split core cts)
			Overload: 1.2 times the nominal value (continuous); 10 times nominal value/1 second;
			Power consumption: ≤ 0.5 VA (each channel);
Measurement accuracy			Frequency 0.05 Hz, voltage and current level 0.5, active energy level 1, reactive energy level 2; 2-31 times harmonic, accuracy: ±1%;
Function	Pulse output		Output mode: open collector optocoupler pulse;
	Communication		RS485 interface, Modbus-RTU protocol, baud rate 1200~38400;
	Switch	Input	Dry contact input, built-in power supply;
		Output	Output mode: normally open contact output relay; Contact capacity: AC 250V/3A, DC 30V/3A;
Security	Withstand voltage at industrial frequency		>AC 2kV/1min；
	Insulation resistance		The input and output terminals are >100MΩ with respect to the chassis;
Environment			Working temperature: -20 ℃ ~ +60 ℃; Storage temperature: -40 ℃ ~ +70 ℃; Relative humidity: ≤95%, non-condensing; Altitude: ≤2500m;
Electromagnetic compatibility			Better than level 3;

2. Expanded model functions:

Switch module	Power supply	RJ45 interface, DC 12V, power consumption ≤1W;
	Communication	RJ45 interface, Modbus-RTU protocol; (communication with the main body)
	Switch input	Dry contact input, built-in power supply;
	Switch output	Output mode: normally open contact output relay; Contact capacity: AC 250V/3A DC 30V/3A;
Temperature measurement leak module	Power supply	RJ45 interface, DC 12V, power consumption ≤1W
	Communication	RJ45 interface, Modbus-RTU protocol; (communication with the main body)
	Temperature measurement	Standard NTC temperature sensor, measuring range -20~100℃;
	Leak measurement	The residual current transformer is connected, the measurement range is 10 ~ 3000 mA;
	Measurement accuracy	Temperature ±2℃, leak level 1;
