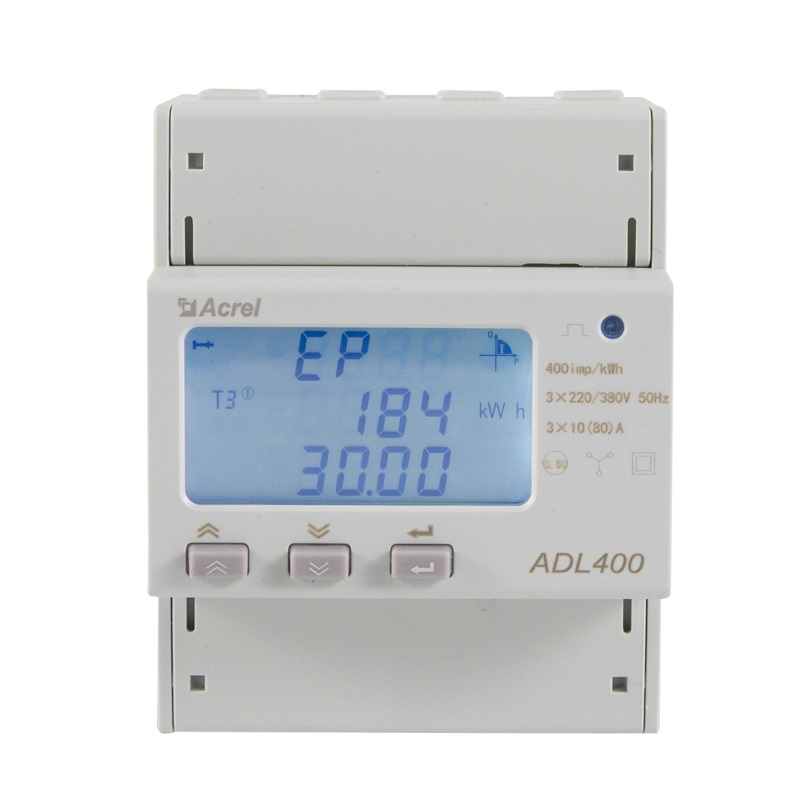

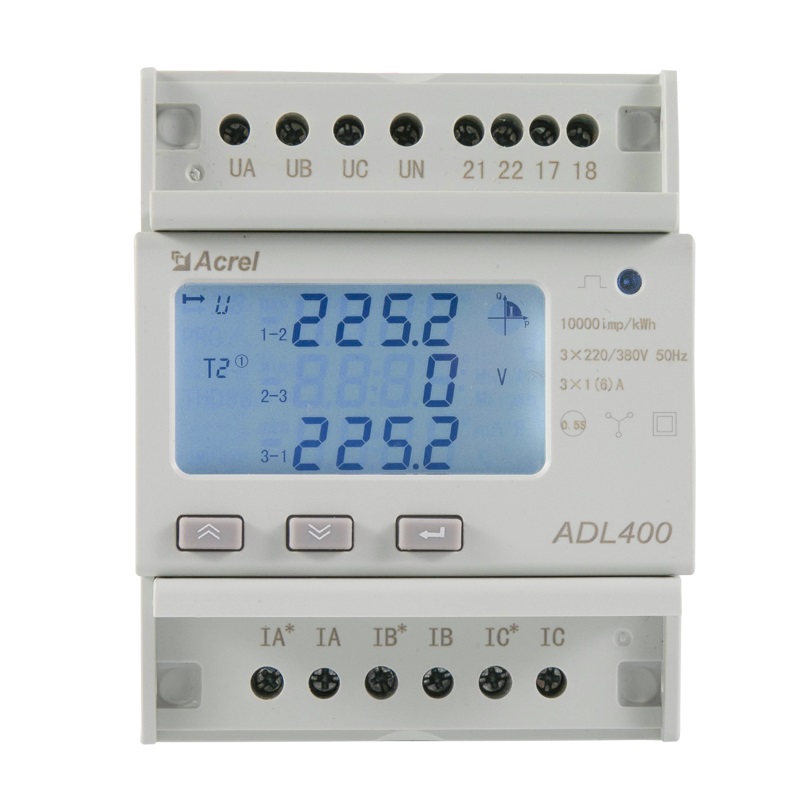

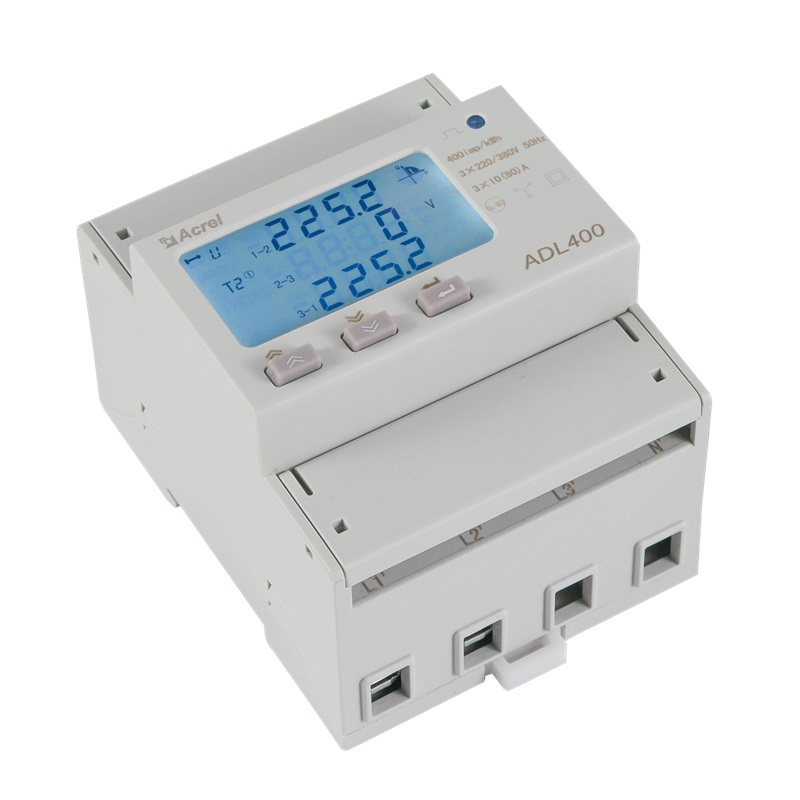

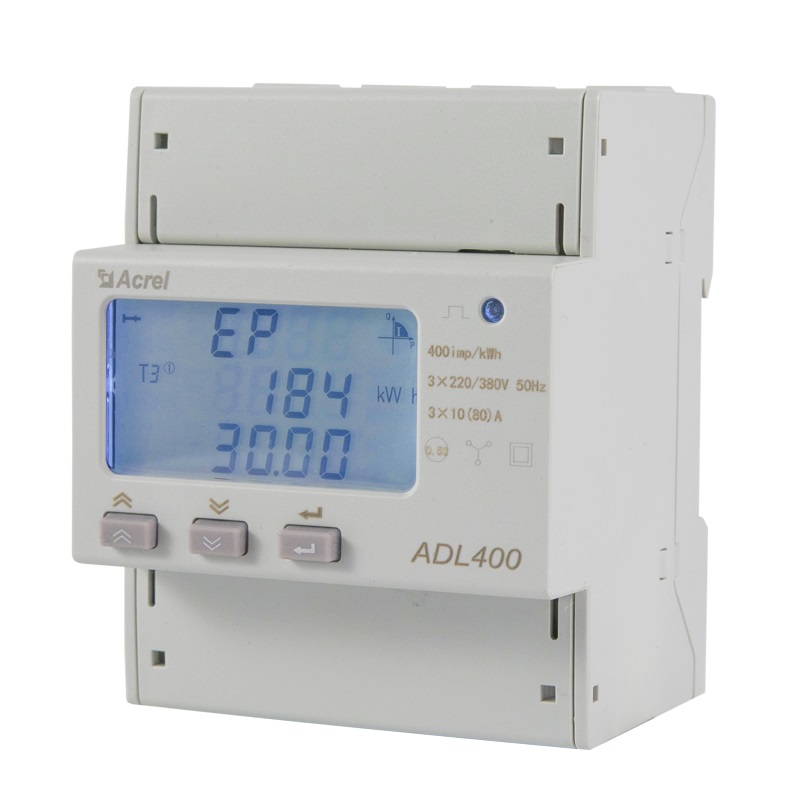

ADL400 MID Three Phase Din Rail Energy Meter

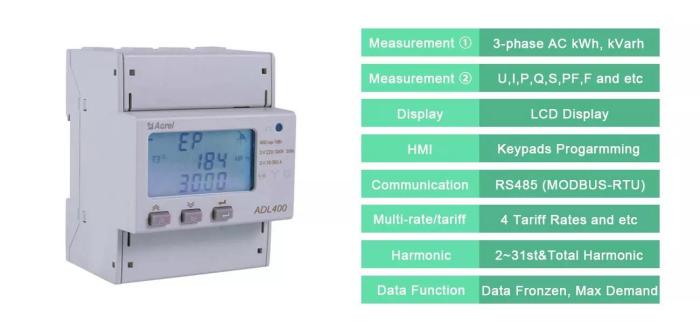

Main features：
• Rated voltage: 3x380~456Vac L-L (direct connection); 3x100~120Vac L-L (via PT);
• Rated current: 3x10(80)A AC (direct connection); 3x1(6)A AC (via CT);
• Accuracy: 0.5% (kWh);
• Communication: RS485 (MODBUS-RTU);
• Multi-rate: 4 Rates, etc.;
• Data function: frozen data, maximum demand, etc.;
• Harmonic: 2~31 and total harmonic;
• Standard and certificate: IEC; CE;CE-MID; EAC;
- Detalhes
- Parâmetros
- Documentos
1. General：
ADL400 is designed for power supply systems, industrial and mining companies and utilities to calculate electricity consumption and manage electrical demand. It features high precision, small size and simple installation. It integrates the measurement of all electrical parameters with comprehensive electricity measurement and management, provides various data from the previous 48 months, verifies the 31st harmonic content and the total harmonic content. It is equipped with an RS485 communication port and adapted to MODBUS-RTU. ADL400 can be used in all types of control systems, SCADA systems and energy management systems. The meter meets the related technical requirements of electricity meter in IEC62053-21 standards.
2. Functions

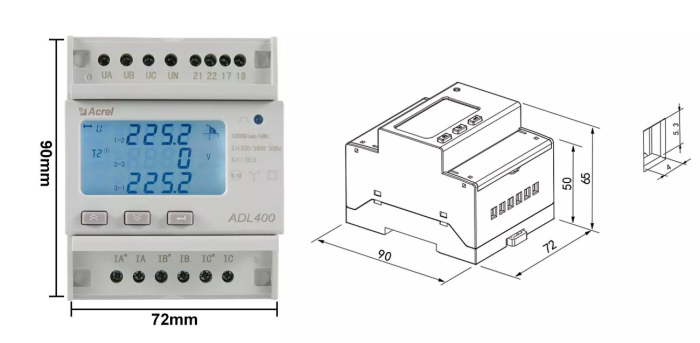

3. Dimension：
Direct access:
Secondary access:

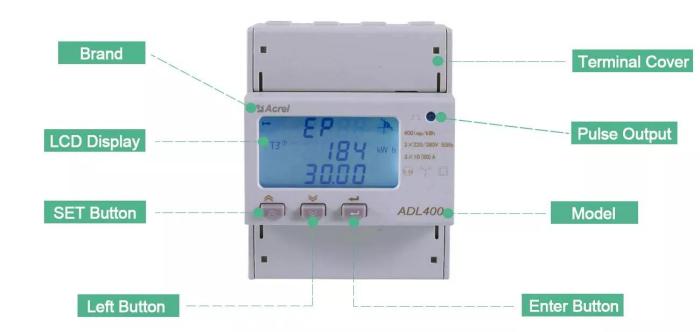

4. Front Panel:

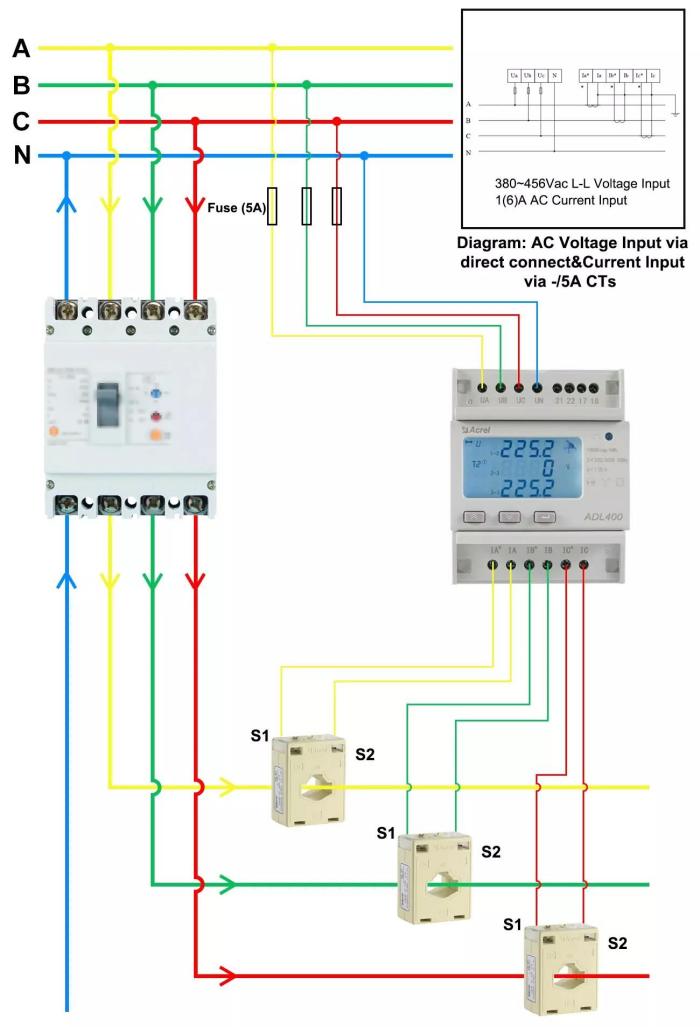

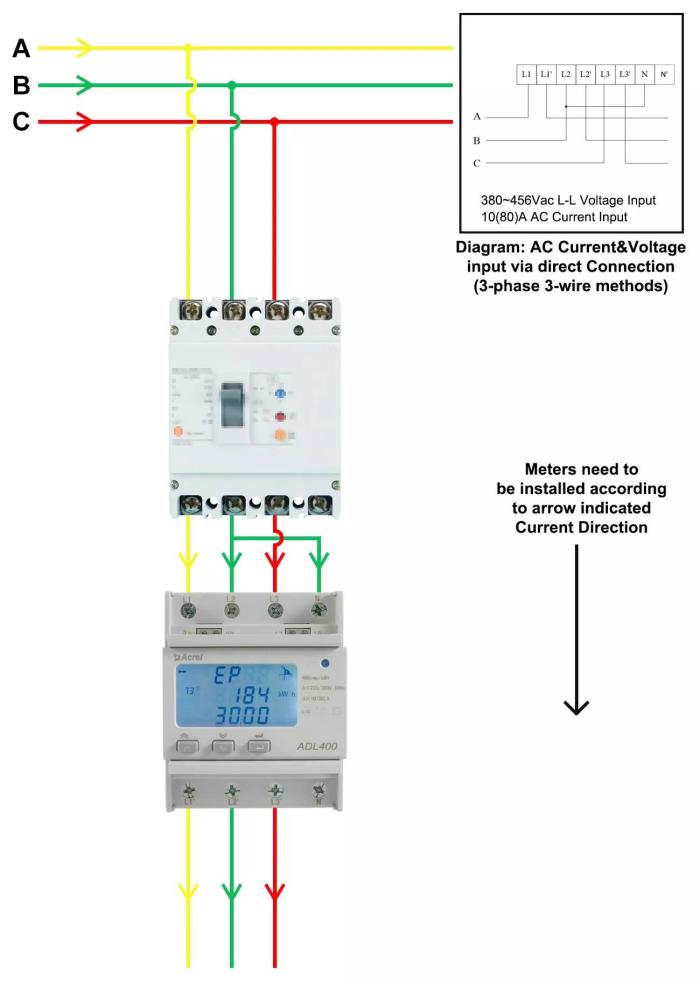

5. Wiring:
|

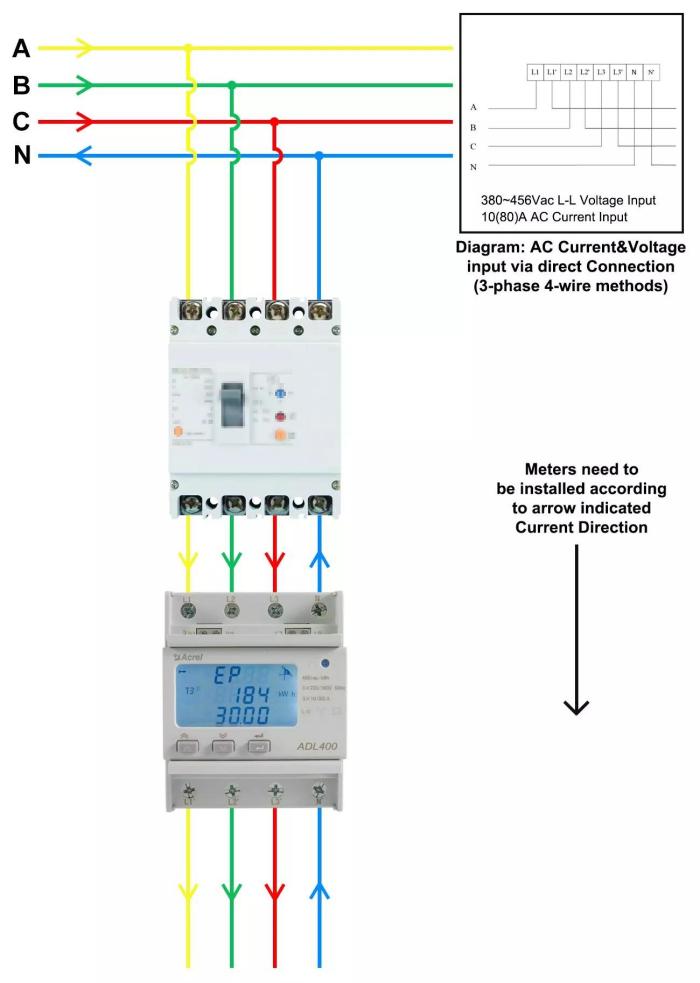

3P4W |
3P3W |
|
|
|

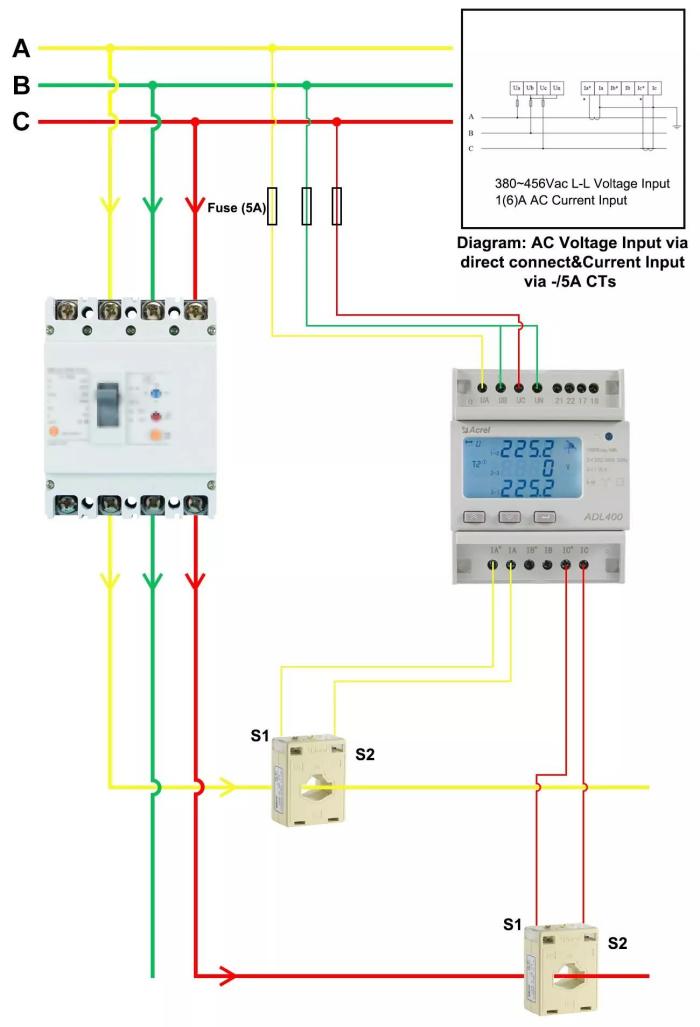

3P4W with CTs |
3P3W with CTs |
|
|

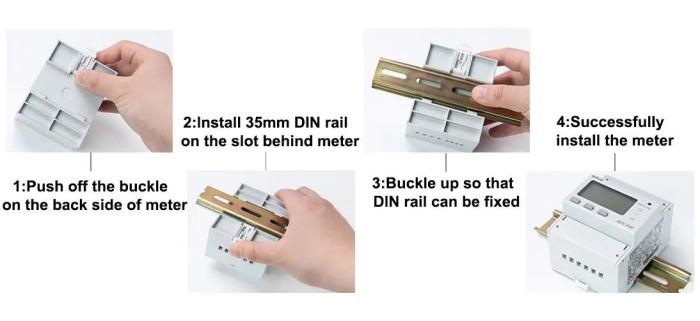

6. Installation:

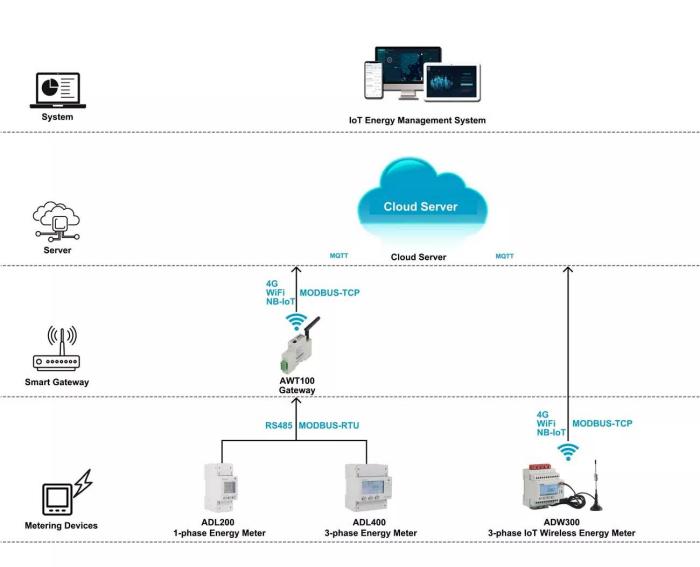

7. Network:
