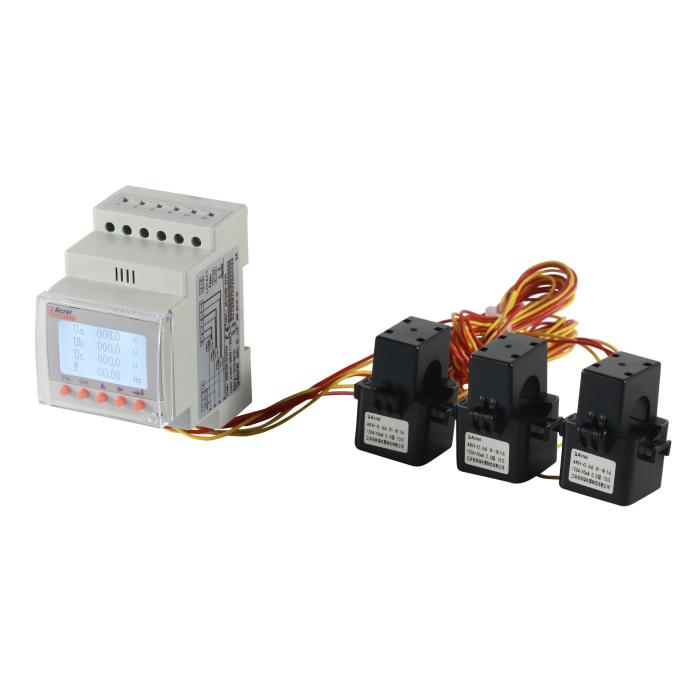

ACR10R Bi-Directional Three Phase Reflux Monitoring Energy Meter

< >

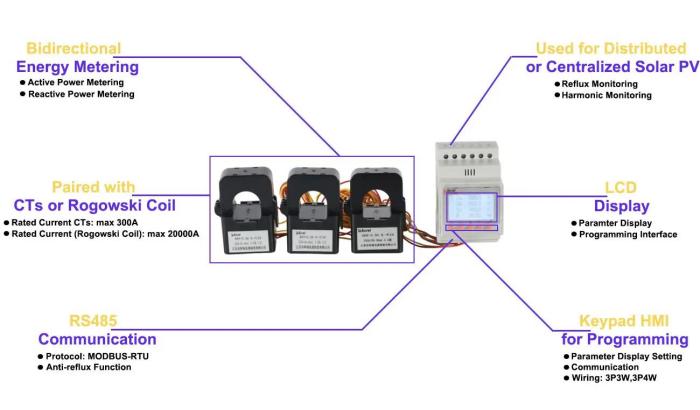

Main features：

• Rated voltage: AC 57.7V/100V, 220V/380V

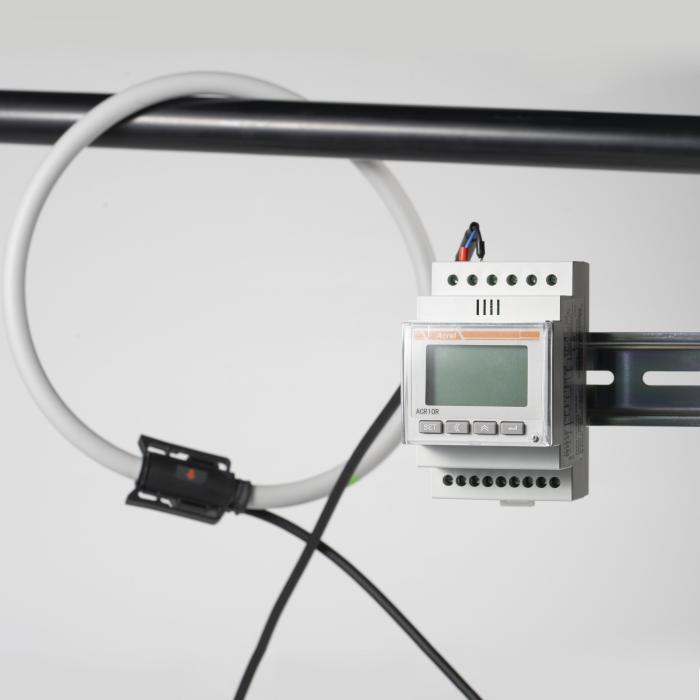

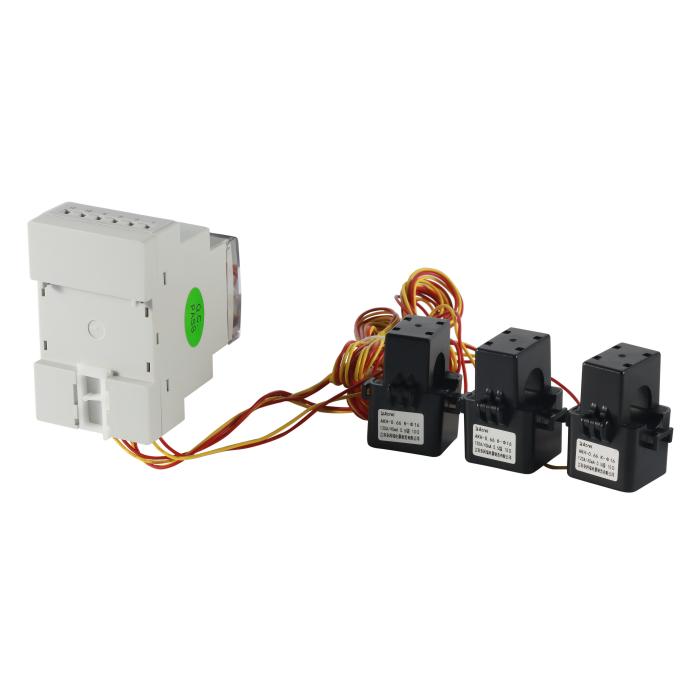

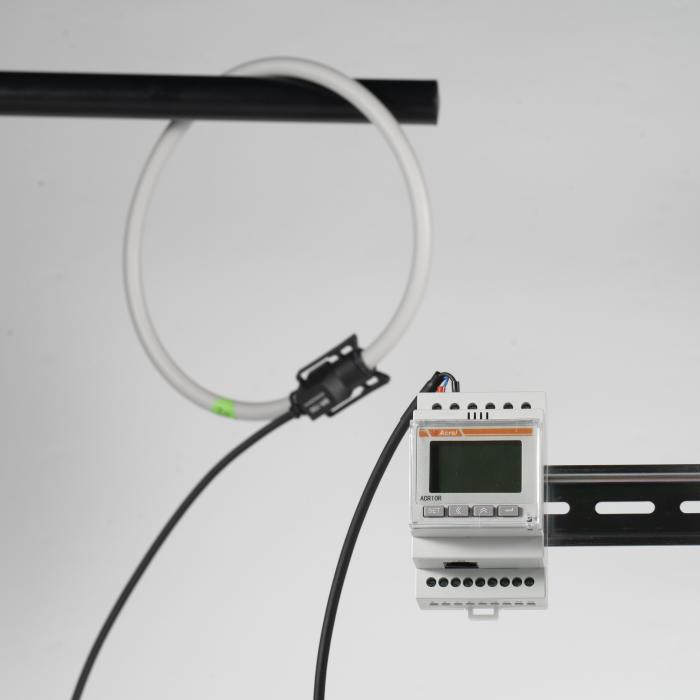

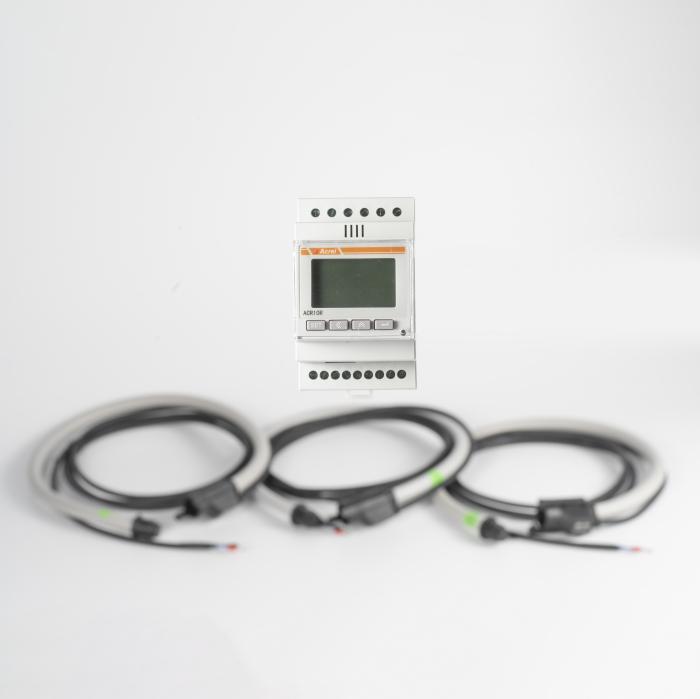

• Rated current: up to 300 A (with CT); up to 20000A (with Rogowski coil)

• Communication: RS485 (MODBUS-RTU)

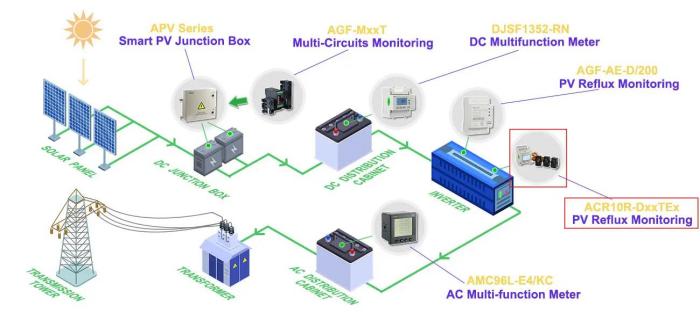

• Application: Use in distributed solar PV and anti-backflow inverter

• LCDDisplay

• Power supply: 85~265V AC or 100~350V DC

• Standard and certificate: CE

Cotação

Detalhes
Parâmetros
Documentos

1.General：

The ACR10R opening and closing type transformer guide rail meter integrates measurements of all electrical parameters and comprehensive energy monitoring and examination management. Meanwhile, it also has various peripheral interfaces for user to choose: with RS485 communication interface, Ethernet interface and RJ45 interface, using MODBUS-RTU protocol to meet communication network management needs; Interfaces with switch input and relay output can realize remote signaling and remote control of circuit breaker switch. It is very suitable for real-time energy monitoring system with an LCD screen and panel buttons to realize parameter setting and control.

2. Functions:

3. Dimension：

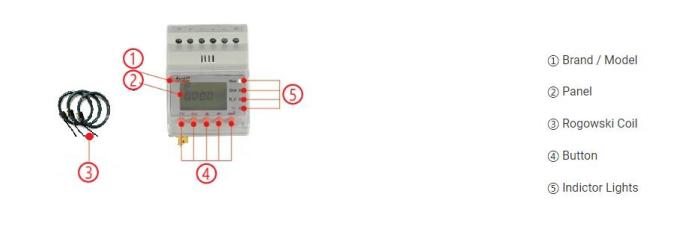

4. Front Panel:

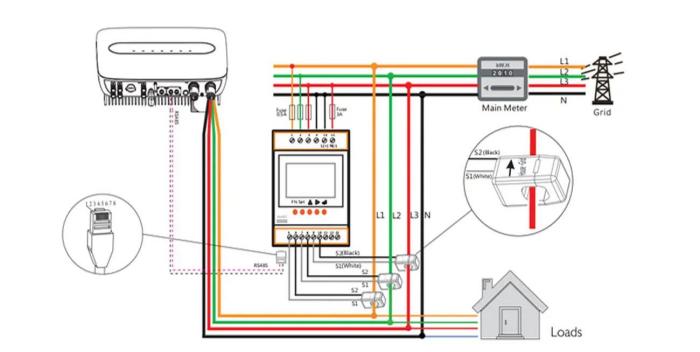

5. Wiring:

6. Network:

Technical parameters			Indicators
Input	Grid		Three-phase three-wire/three-phase four-wire
	Frequency		45～65Hz
	Voltage		Rated voltage:AC 57.7V/100V(100V), 220V/380V(400V)
			Overload: 1.2 times the rated voltage (continuous); 2 times the nominal voltage with a duration of 1 second
			Power consumption: less then 0.2VA
	Current		Rating: with external transformer 80A/26.7mA,120A/40mA,200A/66.66mA With built-in mutual sensor：5A
			Overload: 1.2 times the rated current (continuous); 10 times the rated current with a duration of 1 second
			Power consumption: less then 0.2VA
Output	Electricity		Output mode: open collector optocoupler pulse, 2-way output
			Three-phase	Pulse constant: 100 imp/kWh
	Communication		Interface RS485, Modbus-RTU, Ethernet
	Display		LCD
Function	Switch	Input	4 dry contact inputs
		Output	Output mode: 2-way relay normally open contact output
			Contact capacity: AC 250V/3A, DC 30V/3A
Measurement accuracy			0.5 levels, Reactive energy: 2 levels, Others: 1 level
Power supply			Power consumption AC 85~265V≤10VA
Security	Withstand voltage at industrial frequency		AC2kV between power//switching output//current input and voltage input//communication//pulse output//switching input 1min. Power supply//switching output//current input and voltage input between two AC2kV 1min. AC1kV between communication//pulse output//two-to-two switching input 1min.
	Insulating resistance		Input and output to chassis >100MΩ
Environment			Working temperature: -10 ℃ ~ +55 ℃ (Working limit temperature: -20 ℃ ~ +65 ℃); Storage temperature: -25 ℃ ~ +70 ℃ Relative humidity: 5%~95% non-condensing; altitude: ≤2500m
